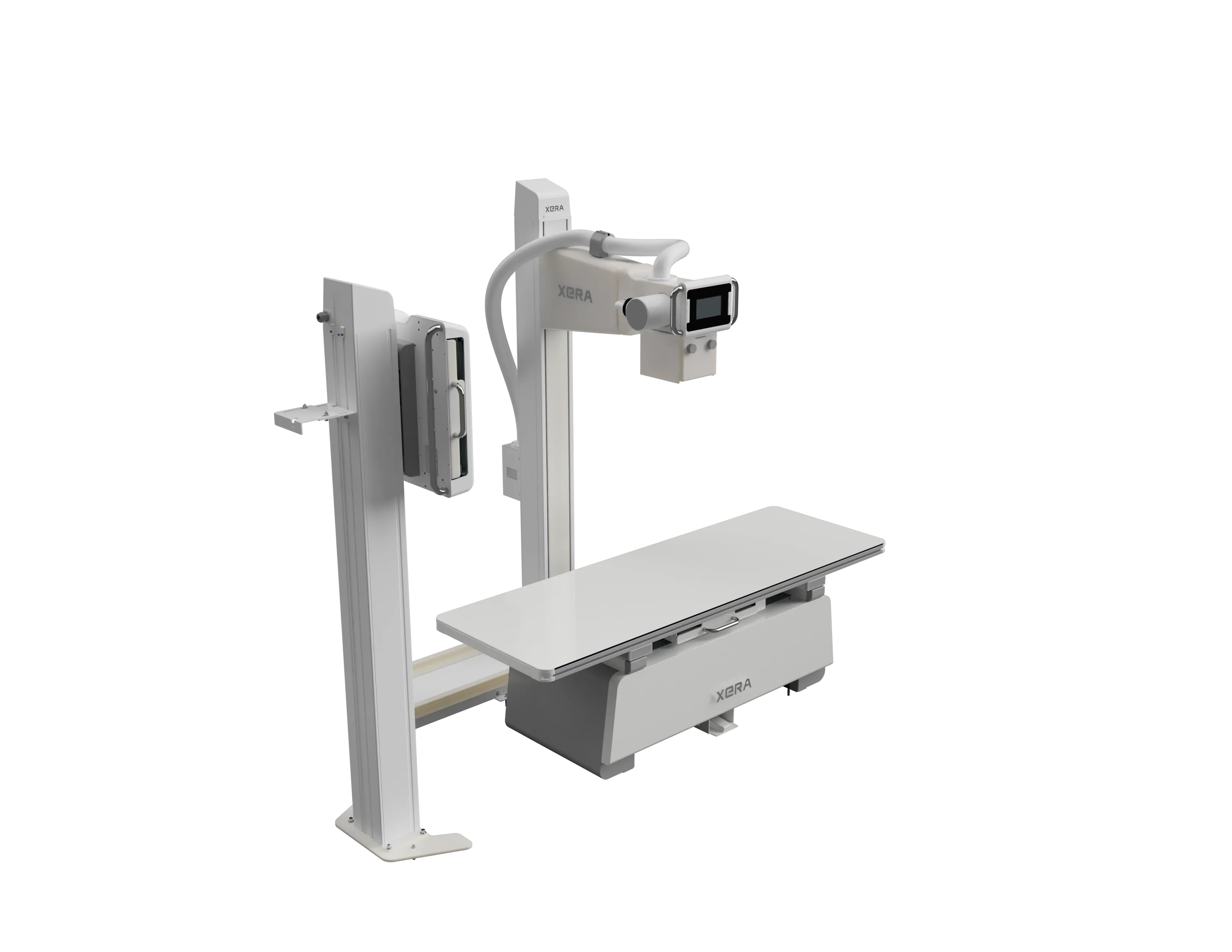

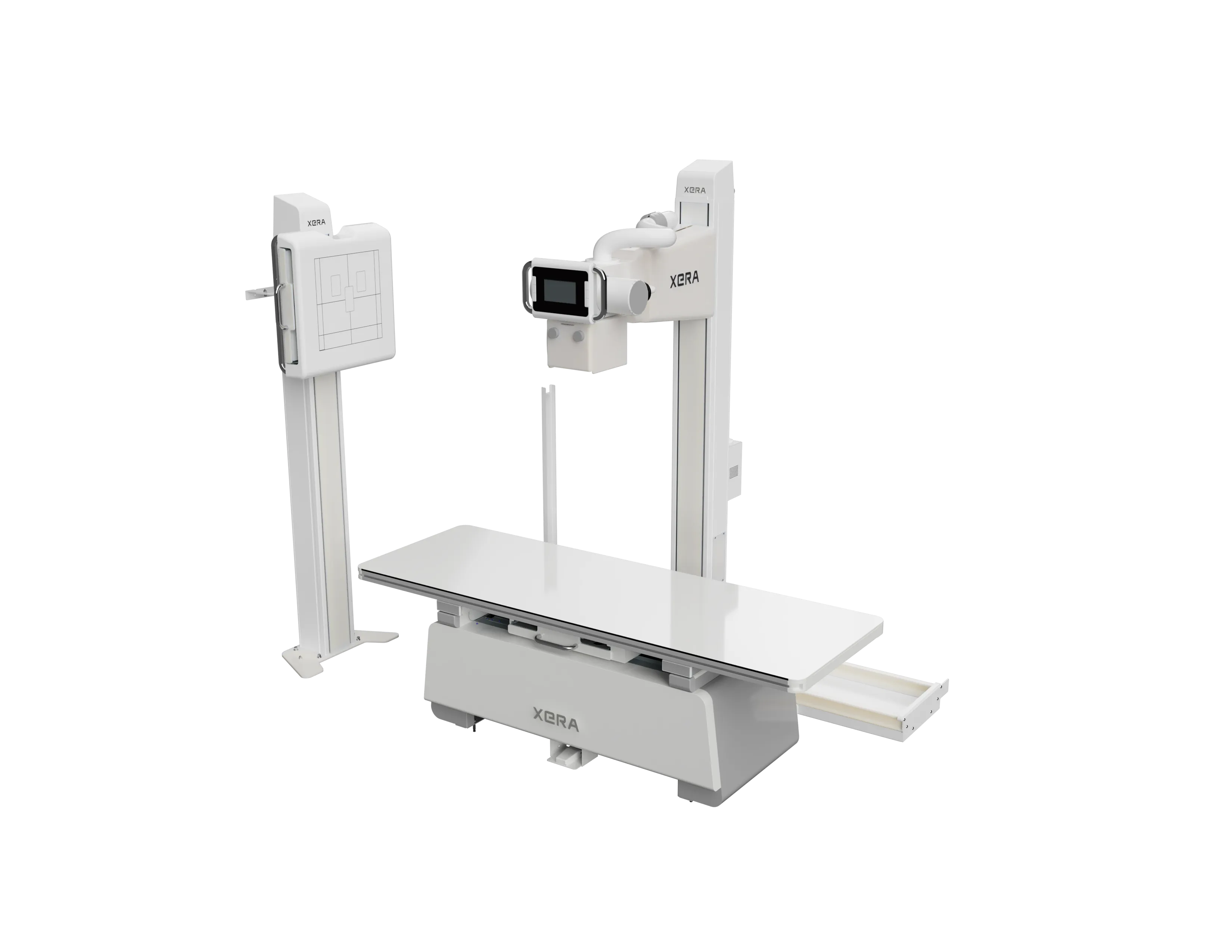

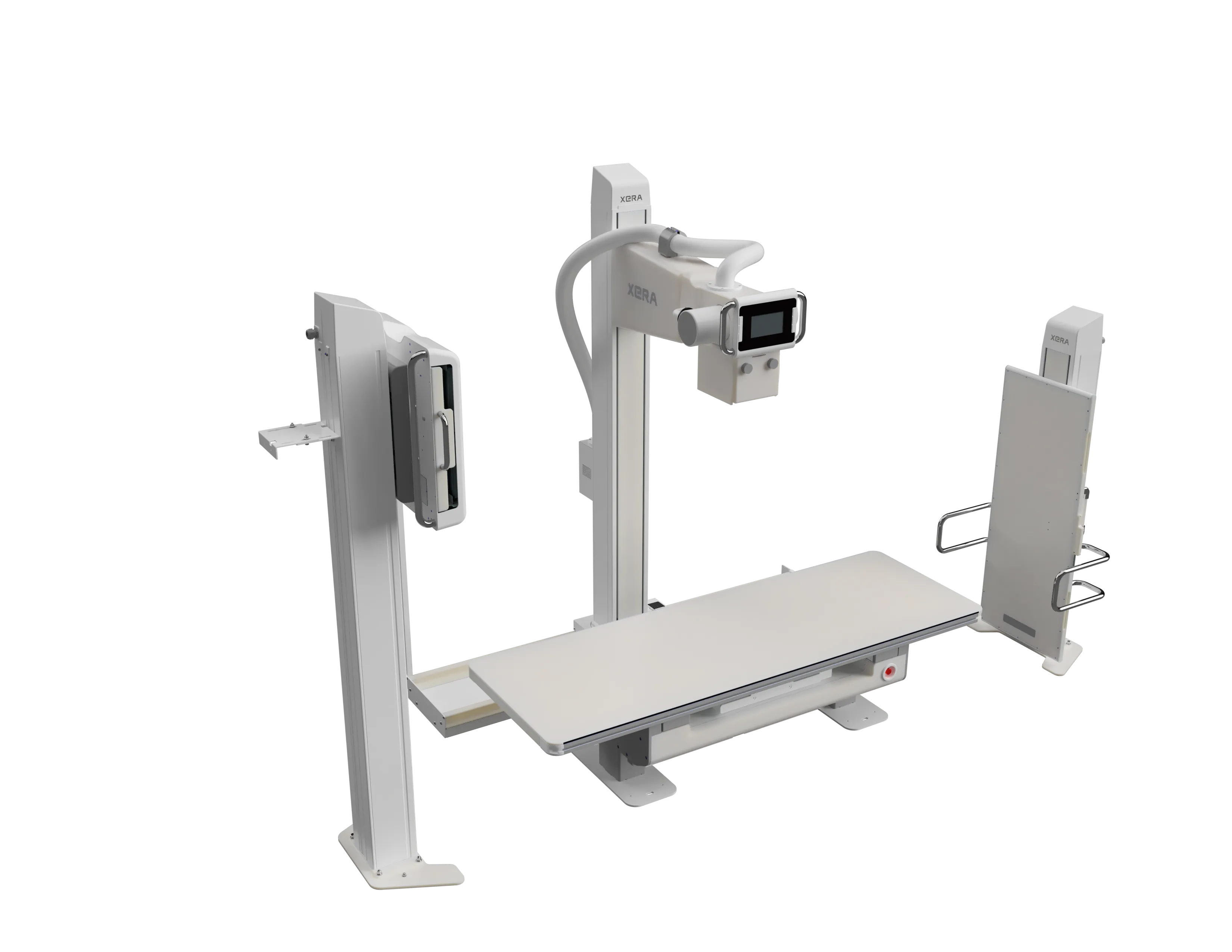

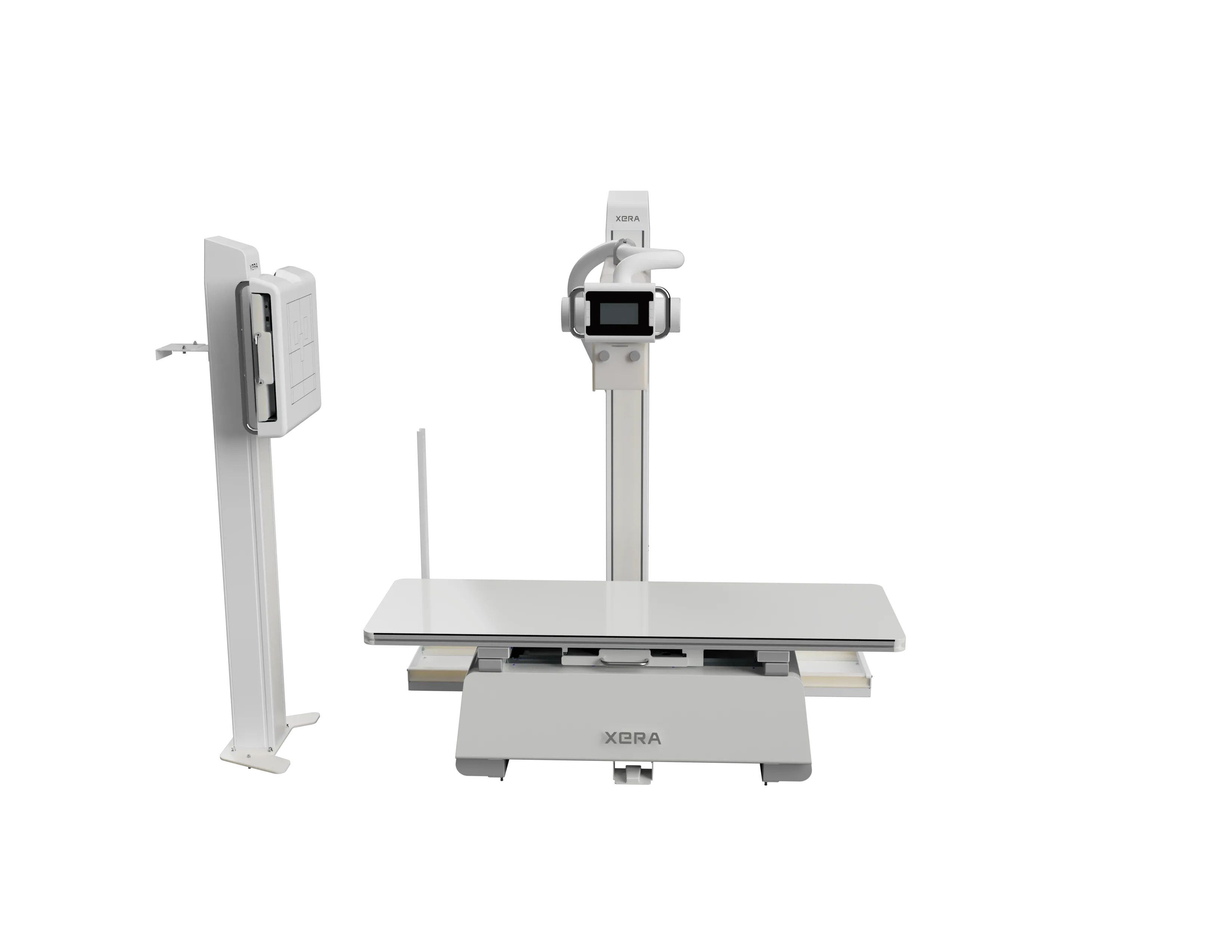

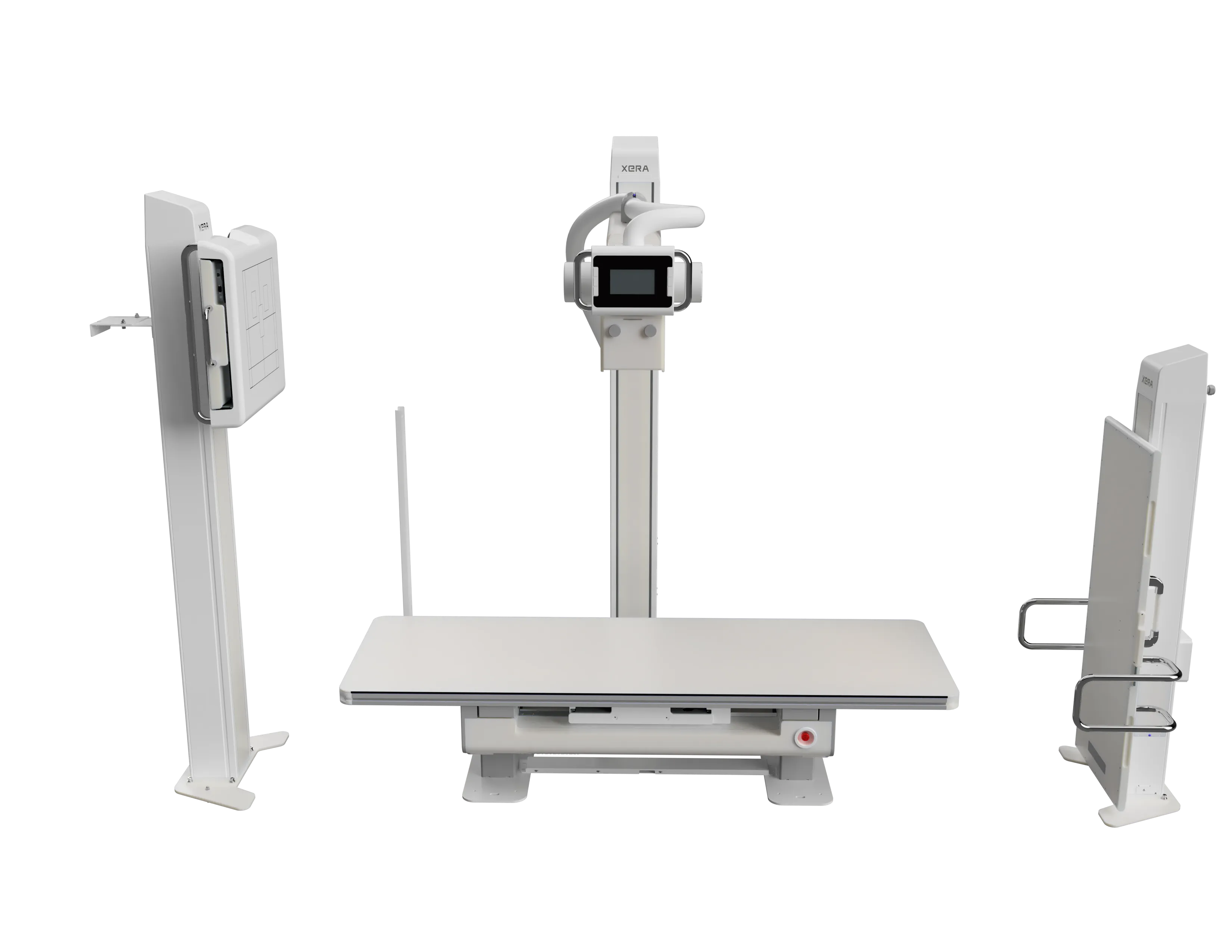

Digital General Radiography System (GR10X-50K / GR10X-40K)

The GR10X series combines high-quality imaging with a user-friendly design to deliver maximum efficiency for your general radiography needs. Its compact structure and floor-to-wall mounted tube stand allow for easy installation even in tight spaces.

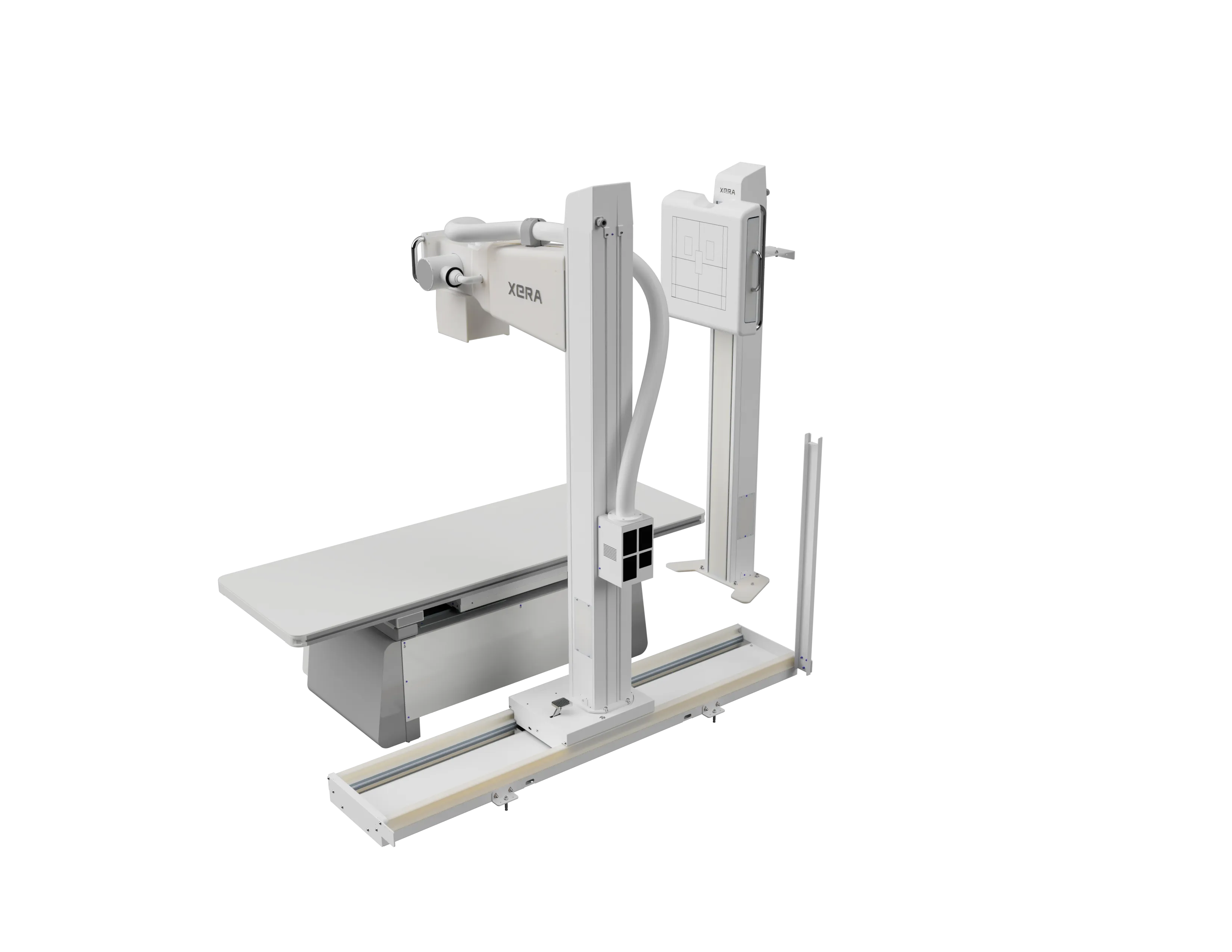

Floor & wall mounted tube stand Floor & wall mounted tube stand
Electromagnetic brake Electromagnetic brake
3 chambers AEC 3 chambers AEC
4-way table movement 4-way table movement
Compact design Compact design
High-quality image High-quality image
Technical Specifications
GENERATOR

50K

230/400 ~ 277/480VAC±10%, 50/60Hz Output: 50KW, 3-Phase

40K

230VAC±10%, 50/60Hz Output: 40KW, 1-Phase
X-RAY TUBE (7252X)40-150kV, 50/60Hz, 150/180Hz
TUBE STAND (XETS-W1)Column rotation: ± 180° with mechanical detent at each 90°
Vertical travel: 1470 mm (473 mm to 1883 mm)
BUCKY STAND

XEBS-W1

Vertical movement: Approx. 1400 mm (340 to 1740 mm)
BUCKY TABLE

XEBT-W4

Table Size: 2200mm x 750mm
Travel distance: longitudinal (± 450 mm), Transverse (± 125 mm) Vertical: 400mm/td>
