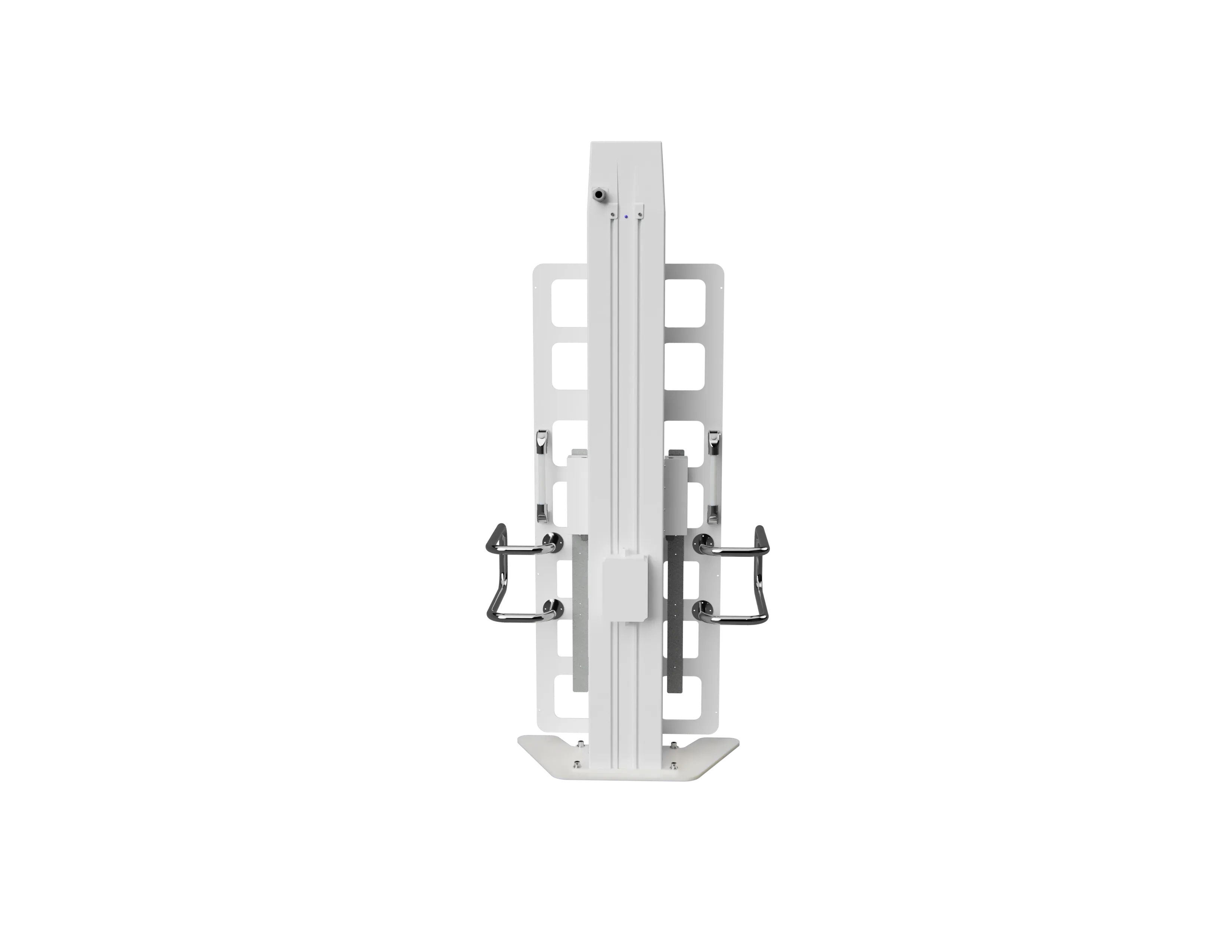

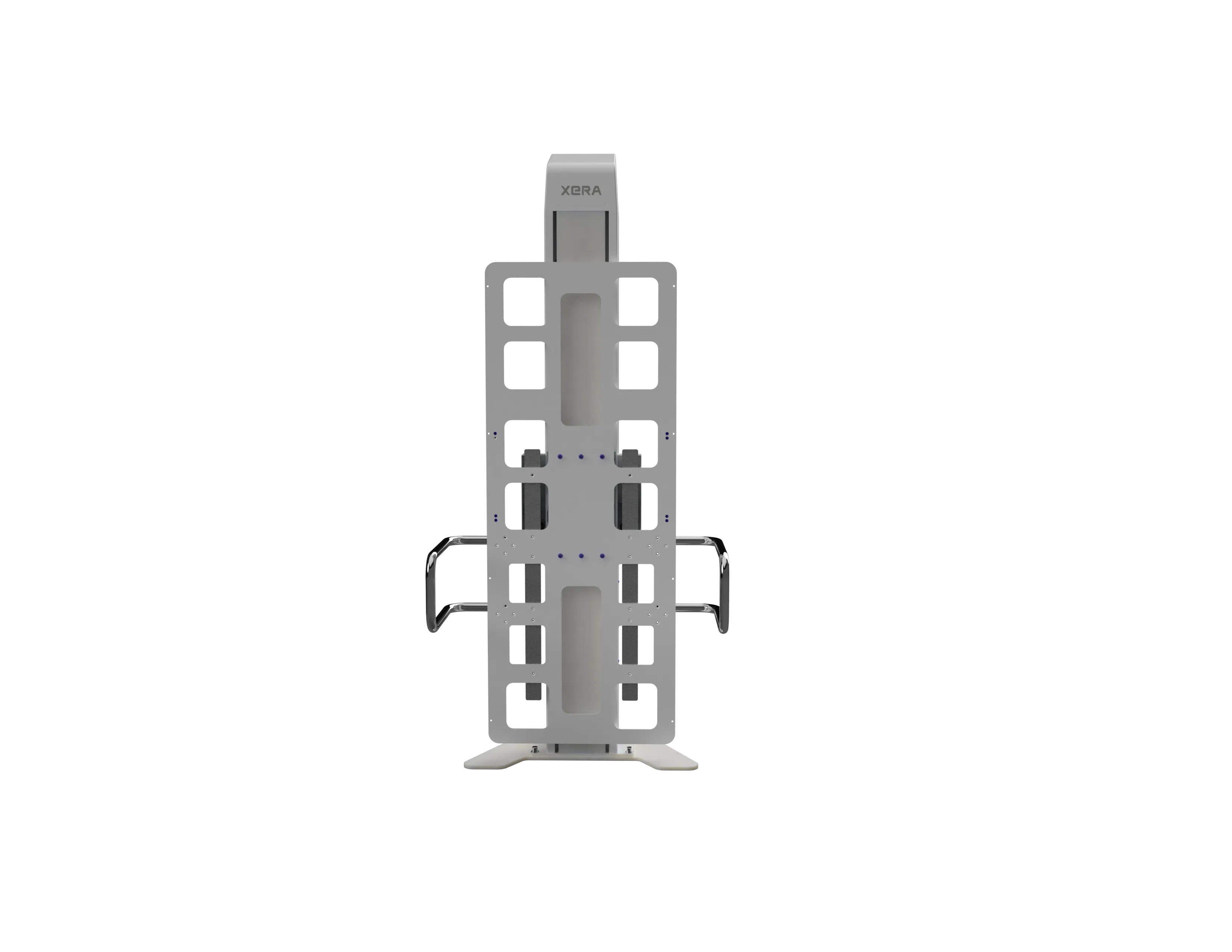

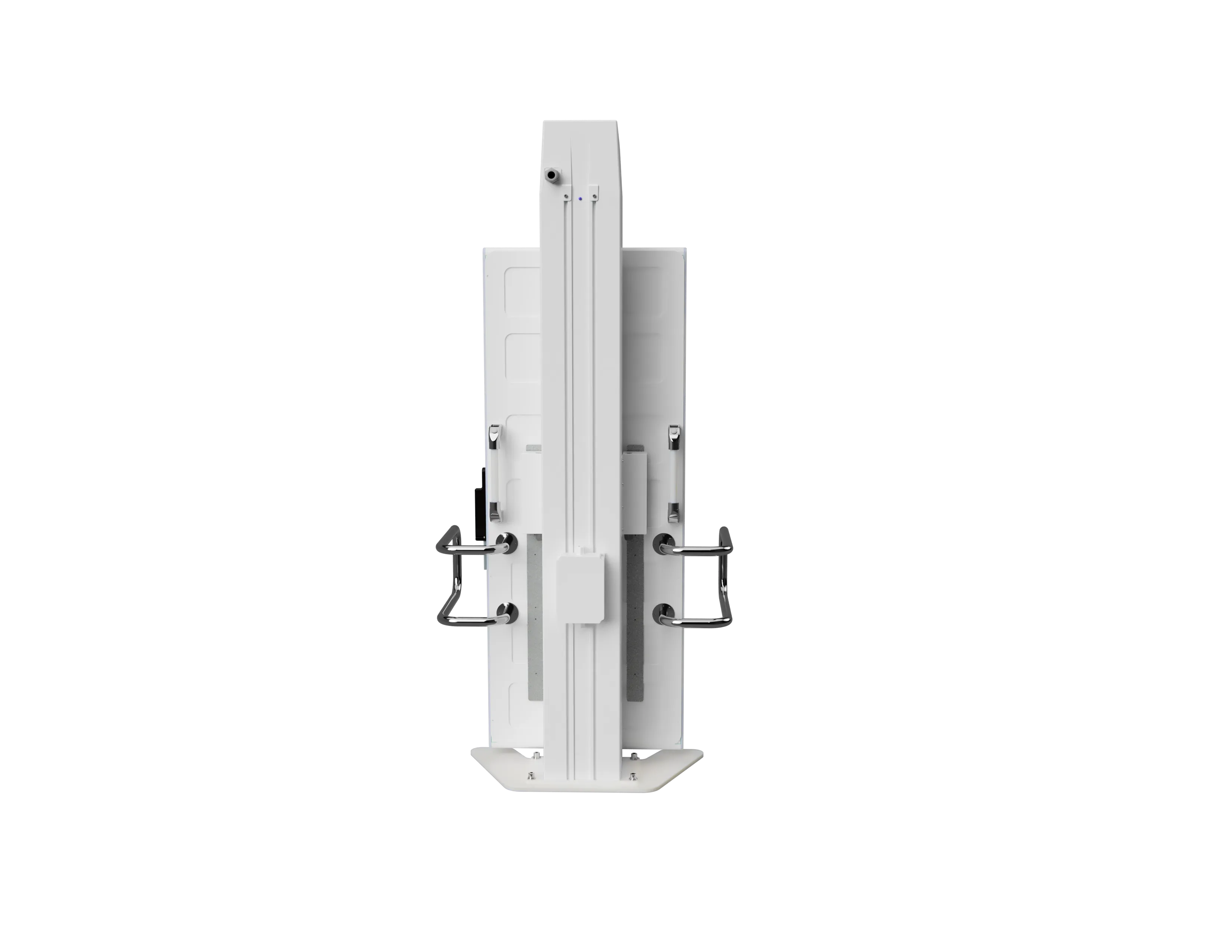

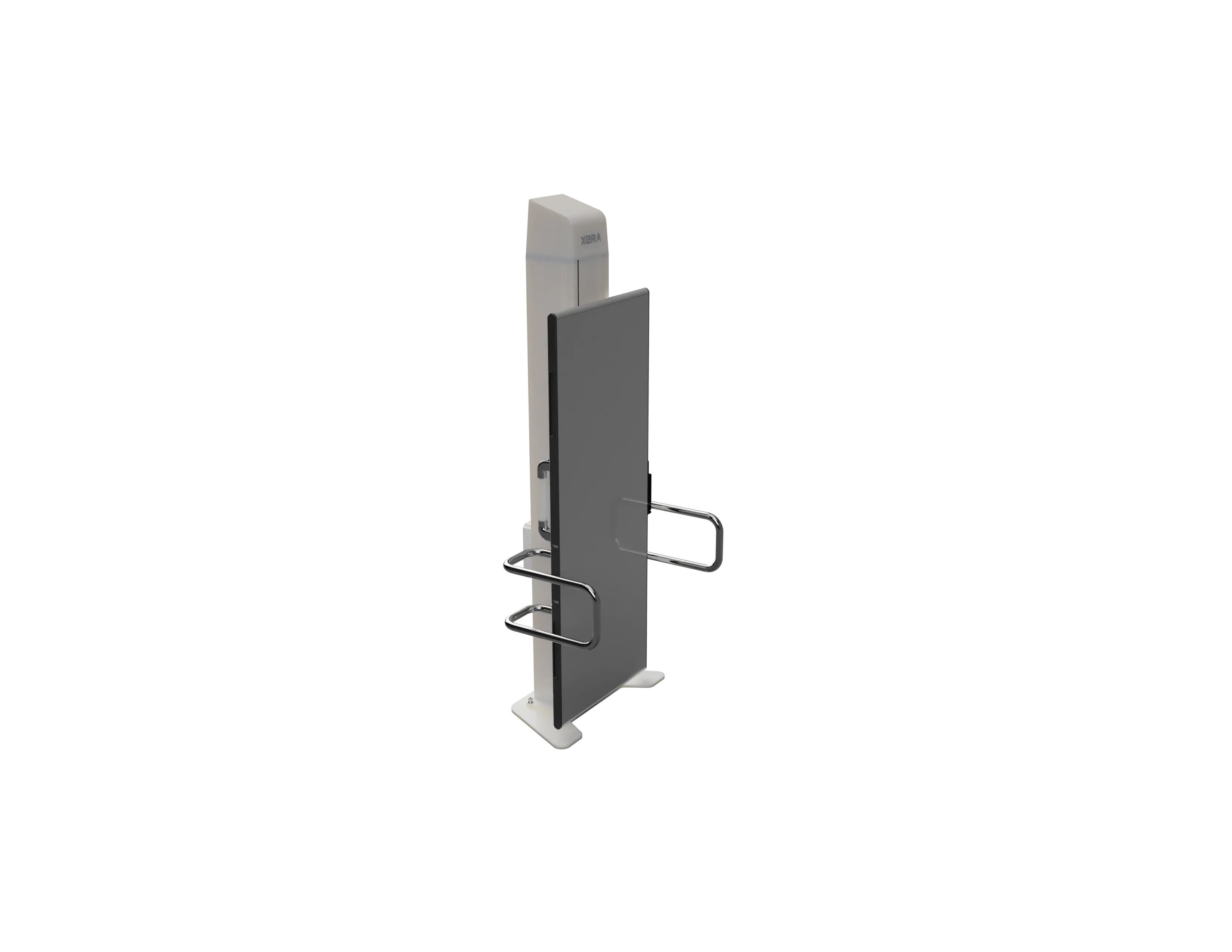

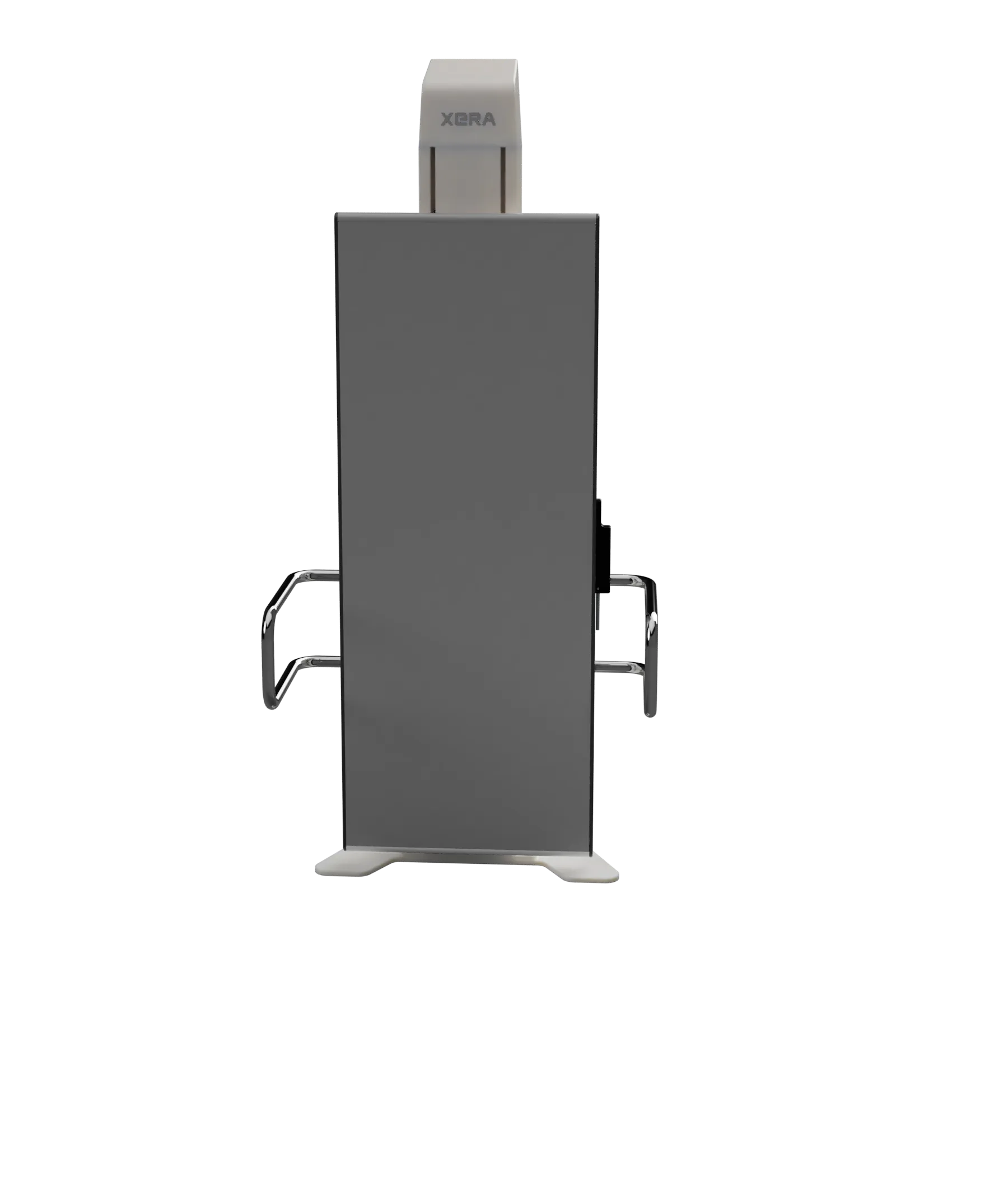

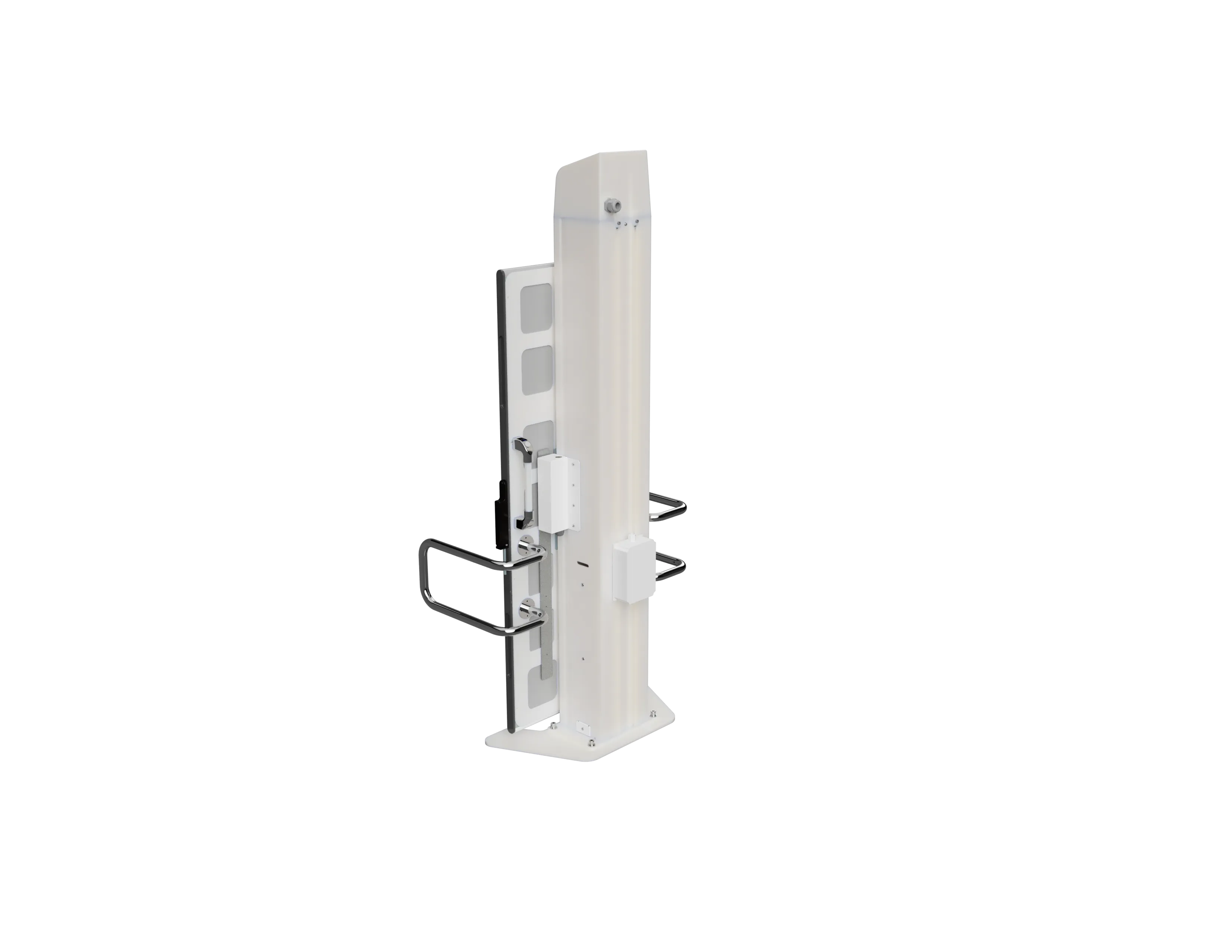

Full Spine - Floor Mounted Column (XEBS-W1-LF)

The XEBS-W1-LF is a floor-mounted radiography column system specially designed for full spine imaging, featuring a wide range of motion along the vertical axis. Its electromagnetic brake system ensures maximum control and stability during positioning. With its flexible structure that can be mounted to both the wall and the floor, it can be easily integrated into various clinical setups.

Wide Vertical Travel Wide Vertical Travel
Electromagnetic Brake Electromagnetic Brake
Flexible Floor & Wall Mount Flexible Floor & Wall Mount
Full Spine Imaging Full Spine Imaging
Technical Specifications

XEBS W1 LF

PowerPower input: 24VDC, Column Top LED Display
Vertical Travel500mm (1370mm to 1870mm)
DimensionsH 1693mm x L 516mm x W 785mm (with holder)
LockingElectromagnetic Brake
MountWall & Floor
Technical Specifications-2

VIVIS-S 1751S Detector

Technologya-Si TFT with photodiode, Gd2O2S:Tb
Pixel Pitch140µm, 3.5 Lp/mm
Image Acquisition Time8s
Physical135.7cm x 53.2cm x 3.0cm, 19.7kg
