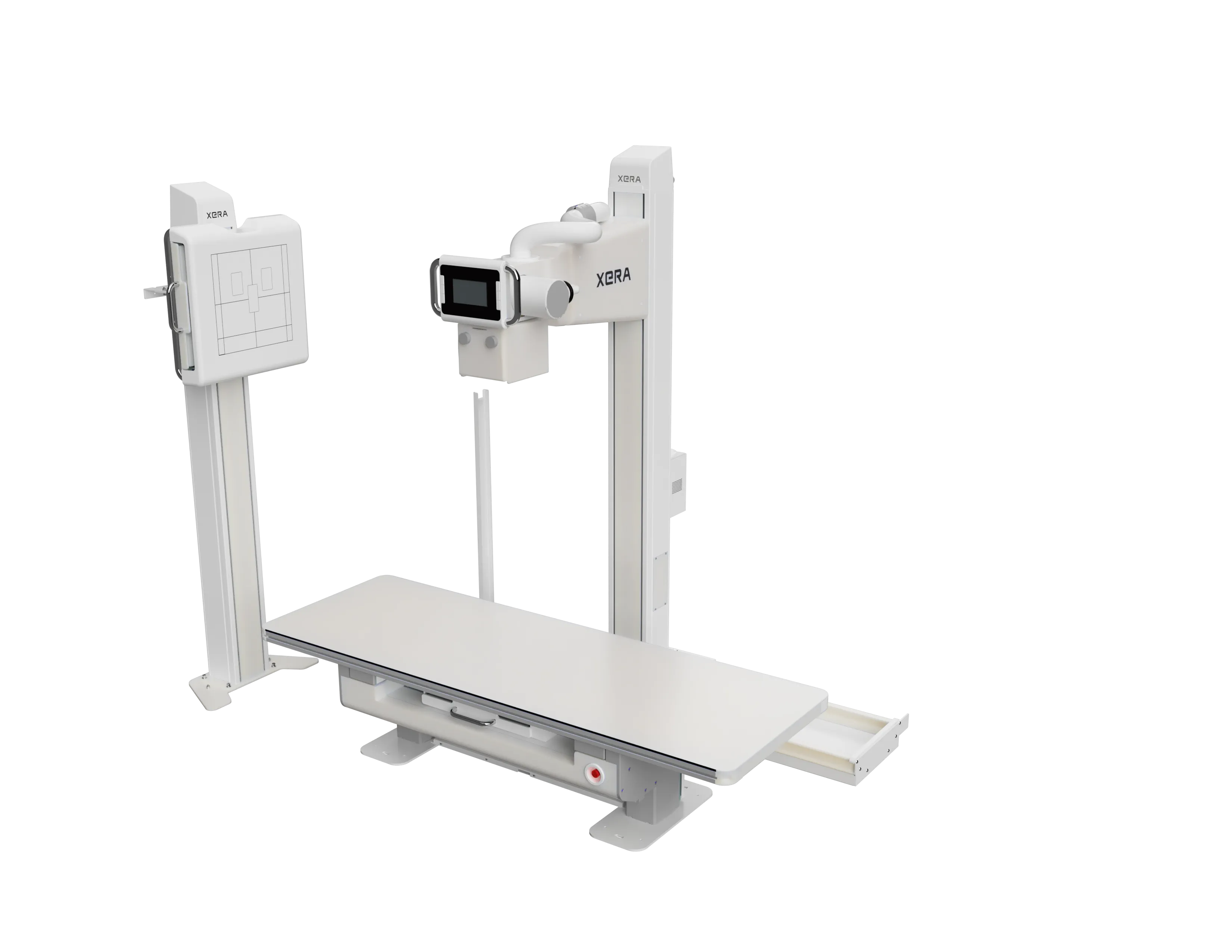

GR10X-6Way

The GR10X–6Way combines a powerful radiography unit with surface technology that enables six-directional movement, offering maximum control and positioning flexibility in clinical settings. With high image quality, wide patient coverage, and a robust structure, it provides a reliable solution for all diagnostic needs.

6-Way Floating Tabletop 6-Way Floating Tabletop
High-Quality Imaging High-Quality Imaging
Powerful Generator Powerful Generator
Precise Positioning Precise Positioning
Floor-Mounted Stand Floor-Mounted Stand
Wide Patient Coverage Wide Patient Coverage
Technical Specifications
GENERATOR

50K

230/400 ~ 277/480VAC±10%, 50/60Hz Output: 50KW, 3-Phase

40K

230VAC±10%, 50/60Hz Output: 40KW, 1-Phase
X-RAY TUBE (7252X)40-150kV, 50/60Hz, 150/180Hz
TUBE STAND (XETS-W1)Column rotation: ± 180° with mechanical detent at each 90°
Vertical travel: 1470 mm (473 mm to 1883 mm)
BUCKY STAND

XEBS-W1

Vertical movement: Approx. 1400 mm (340 to 1740 mm)
6WAY BUCKY TABLE

Tabletop Dimensions

2200 mm (L) x 800 mm (W)

Movement Ranges

Vertical: 550-850 mm, Longitudinal: ±500 mm, Transverse: ±150 mm

Load Capacity

250 kg

Material

High-durability carbon fiber tabletop
