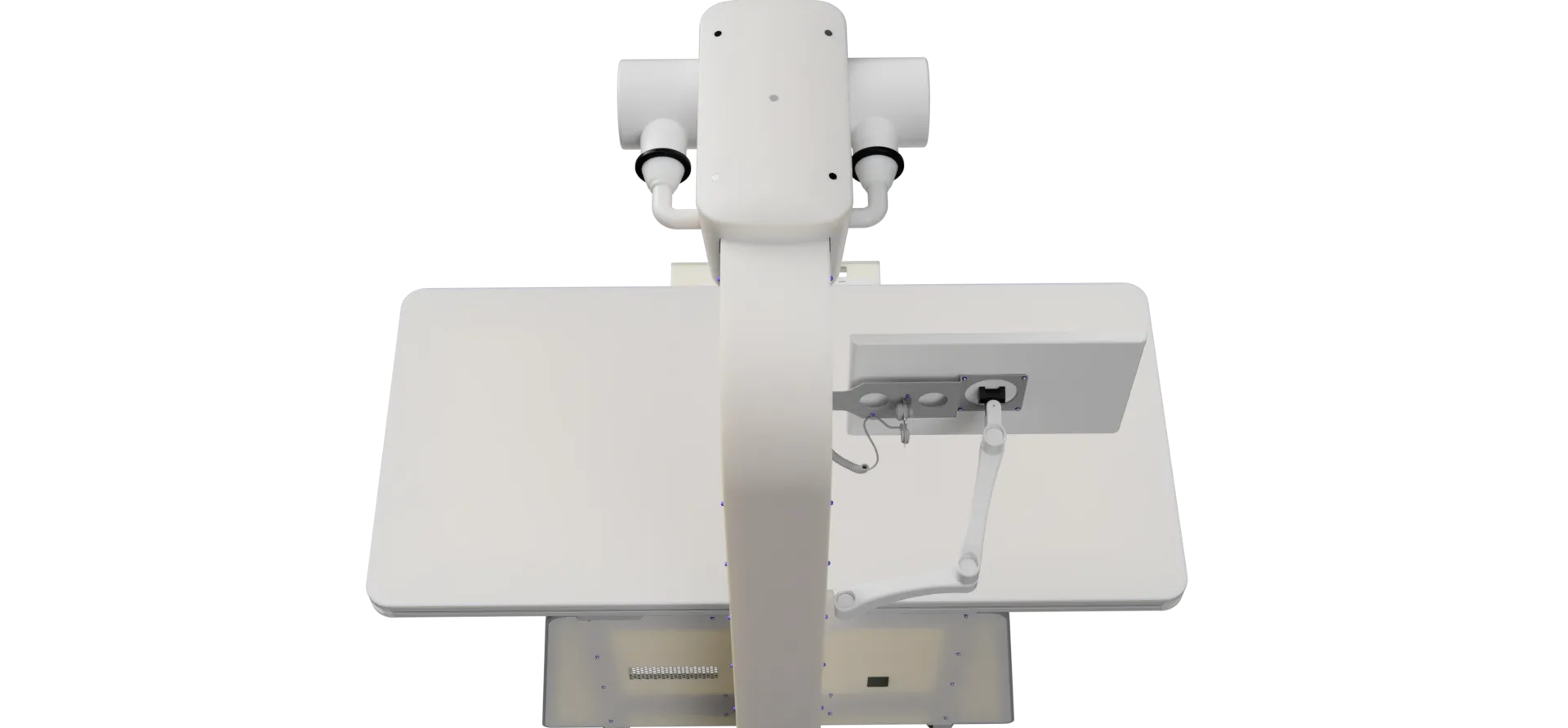

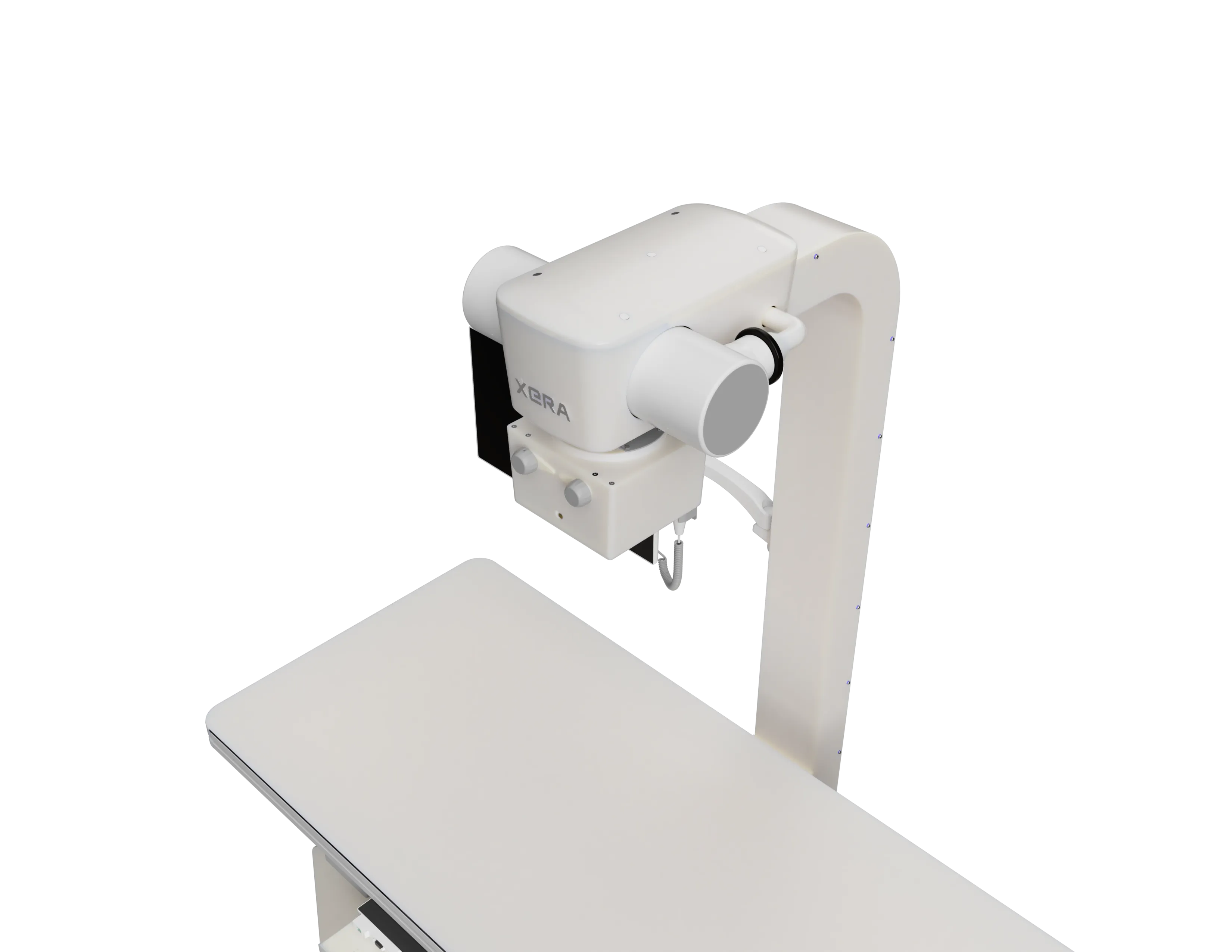

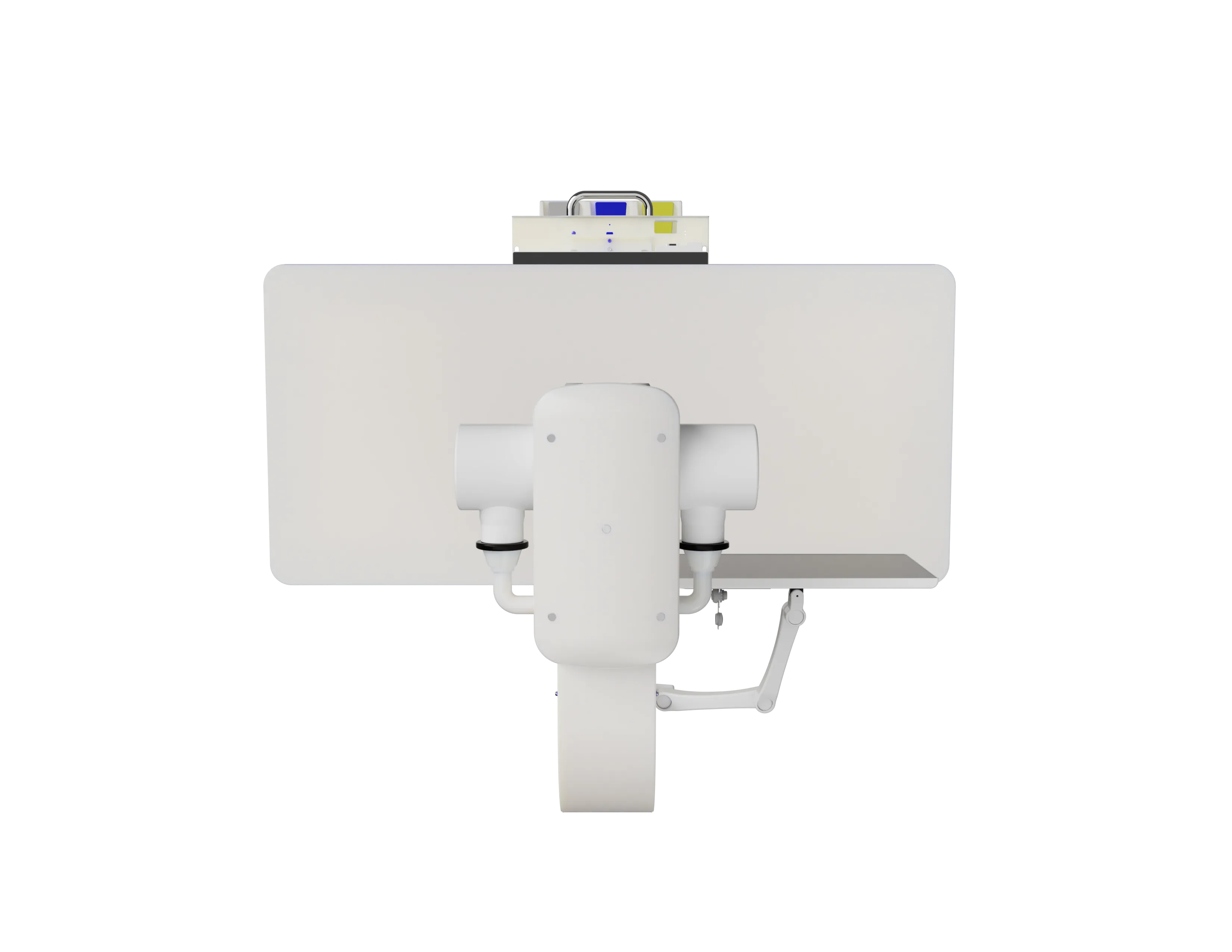

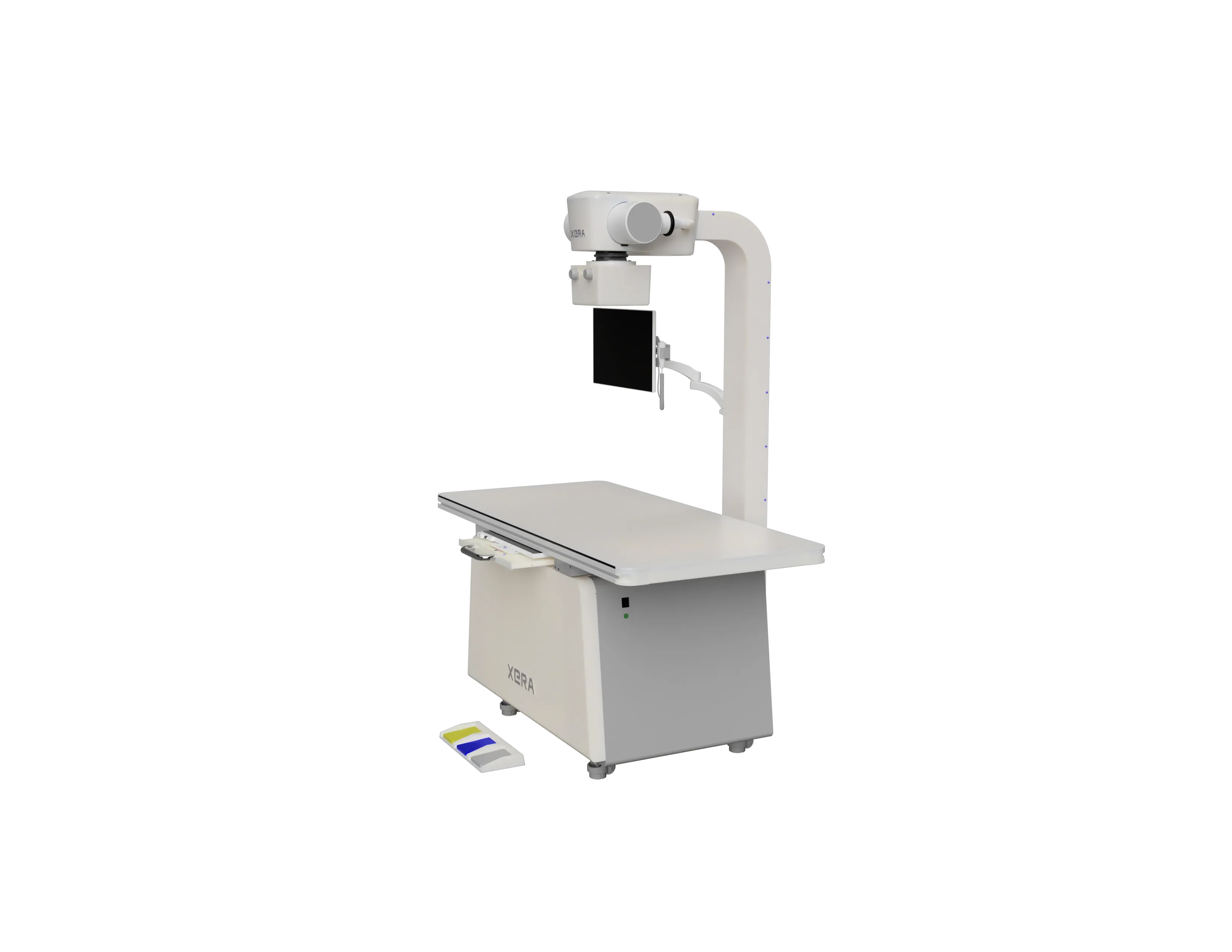

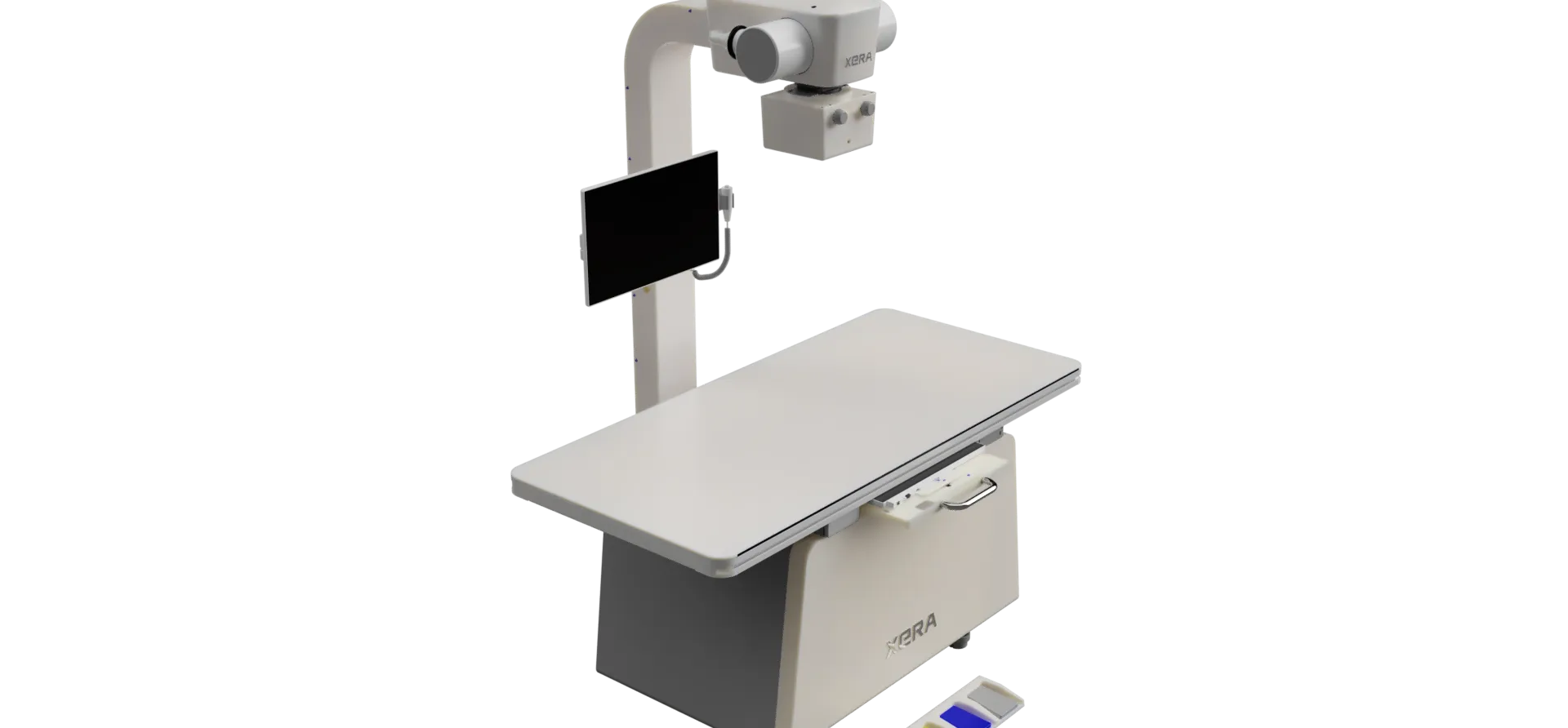

Veterinary X-Ray System (VR10X-40K)

The VR10X-40K is a powerful and versatile X-ray system designed to meet the high imaging demands of veterinary clinics. Its 40 kW generator enables rapid and continuous exposures. Equipped with a four-way electromagnetic brake table and a wide range of motion, it ensures safe and efficient imaging of animals of all sizes.

32kW-40kW Power 32kW-40kW Power
4-Way Moving Table 4-Way Moving Table
Electromagnetic Brake Electromagnetic Brake
High Load Capacity High Load Capacity
High-Quality Image High-Quality Image
High Resolution Touch Screen High Resolution Touch Screen
Technical Specifications

40kW

GENERATOR230VAC±10%, 50/60Hz Output: 40KW, 1-Phase
TRAVEL DISTANCELongitudinal (± 450 mm) Transverse (± 125 mm)
DIMENSIONS1600 mm(L) x 750mm (W) x 1870 mm (H)
LOCKINGElectromagnetic Brake
4WAY-TABLESize: 1600 mm(L) x 750mm (W) x 800 mm (H)
Max Load: 200kg
Technical Specifications-2

32kW

GENERATOR230VAC±10%, 50/60Hz Output: 32KW, 1-Phase
TRAVEL DISTANCELongitudinal (± 450 mm) Transverse (± 125 mm)
DIMENSIONS1600 mm(L) x 750mm (W) x 1870 mm (H)
LOCKINGElectromagnetic Brake
4WAY-TABLESize: 1600 mm(L) x 750mm (W) x 800 mm (H)
Max Load: 200kg
