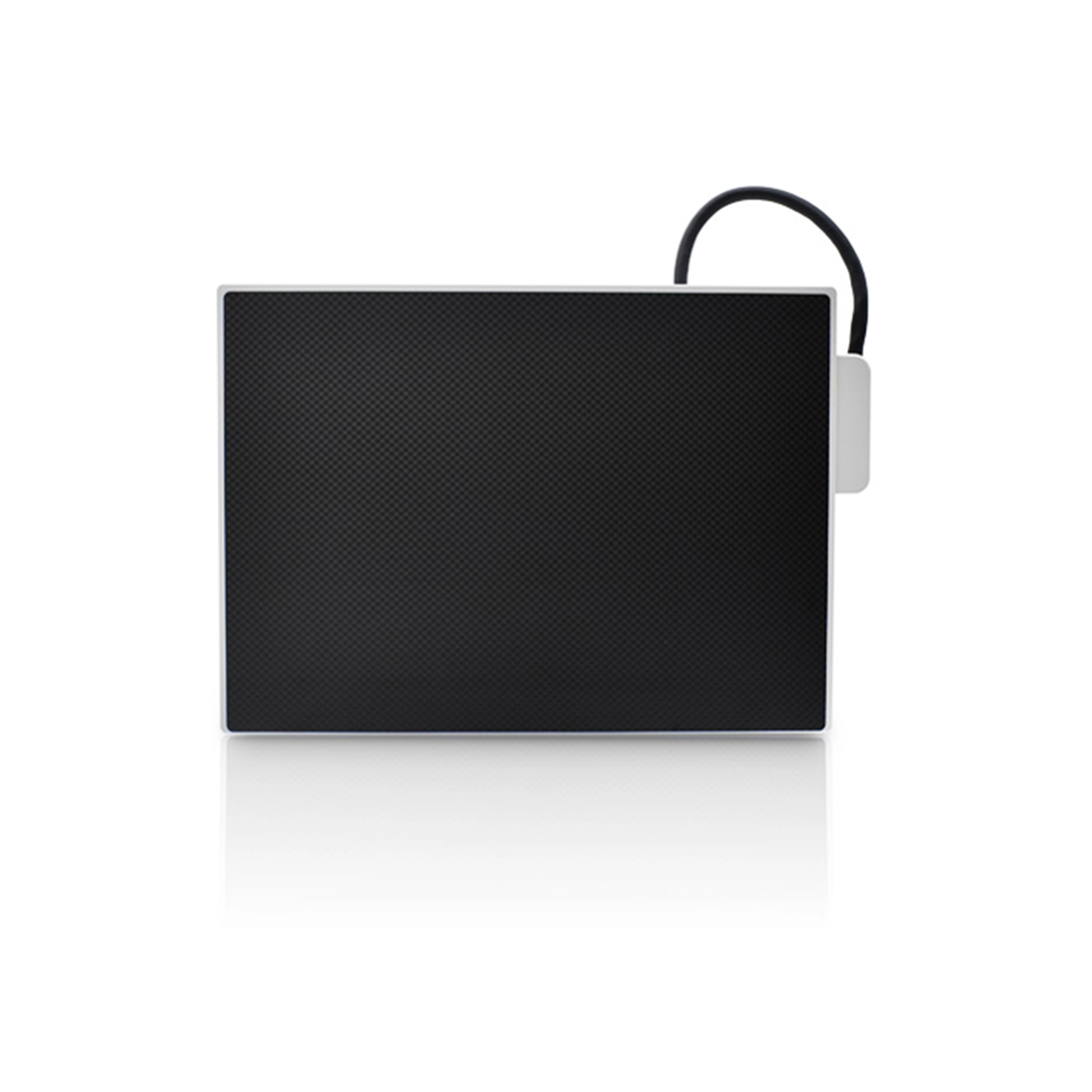

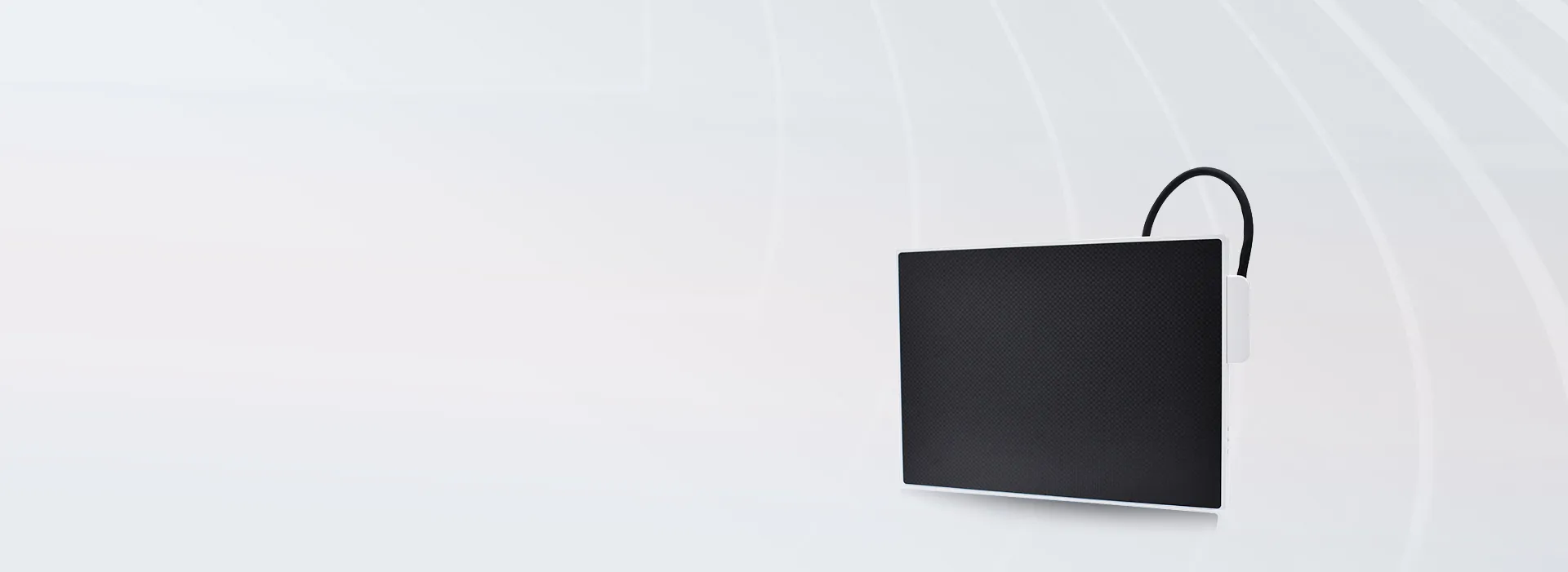

VIVIX-M 1824S

Superior Image Quality

  • IGZO TFT Panel
  • High MTF & DQE
  • Pixel Pitch : 75 ㎛



Easy Upgrade

  • Anytime™ :
    Vieworks' proprietary AED (Automatic Exposure Detection)
    technology with reliable performance
  • ISO 4090 :
    same size as a film/CR cassette
  • Special Design for Conventional AEC Systems :
    the mechanical part is designed to use the existing system as is

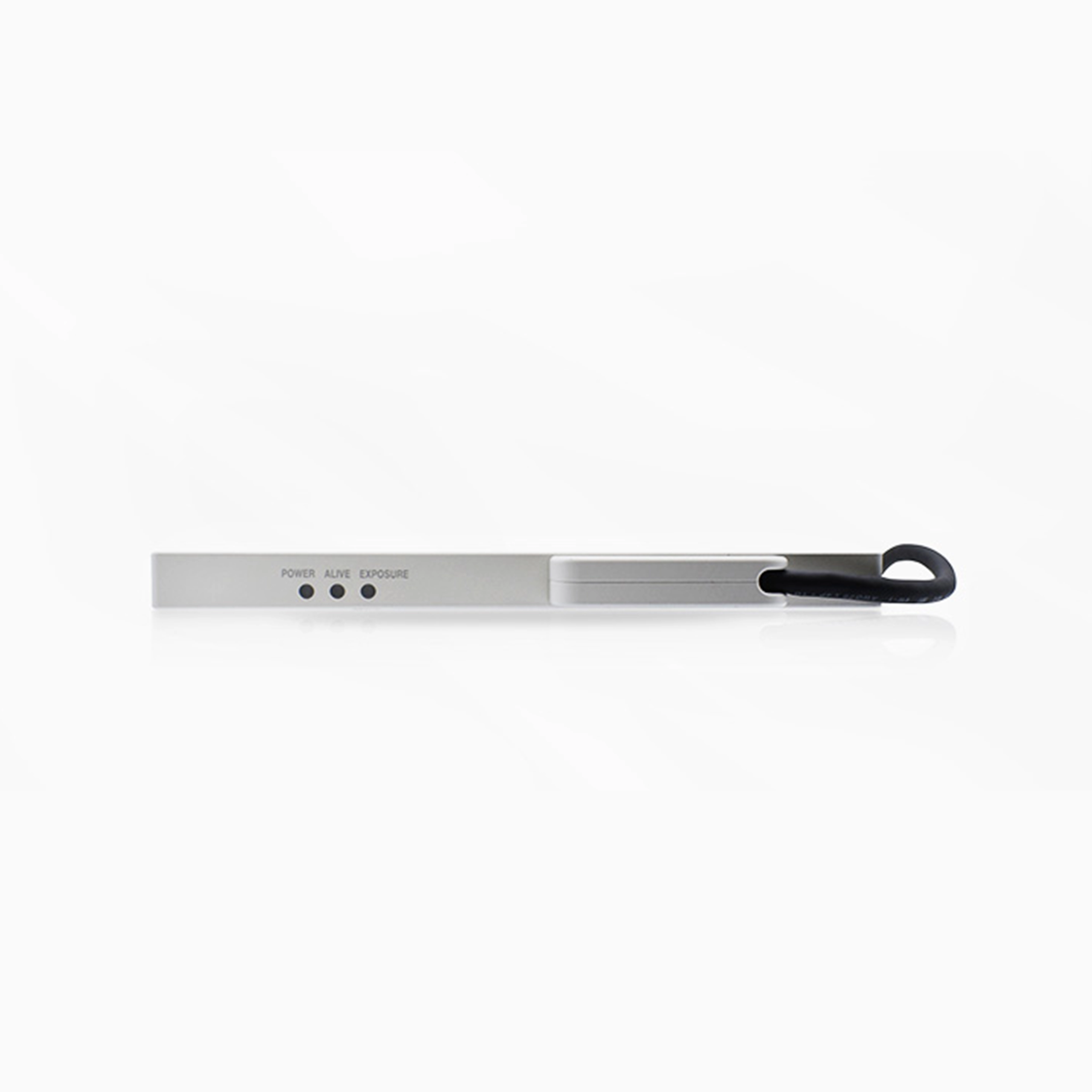

Thin Chest Wall Distance

  • Bezel Size : 2 mm
  • Convenient Patient Positioning
  • Securing Active Area Easily

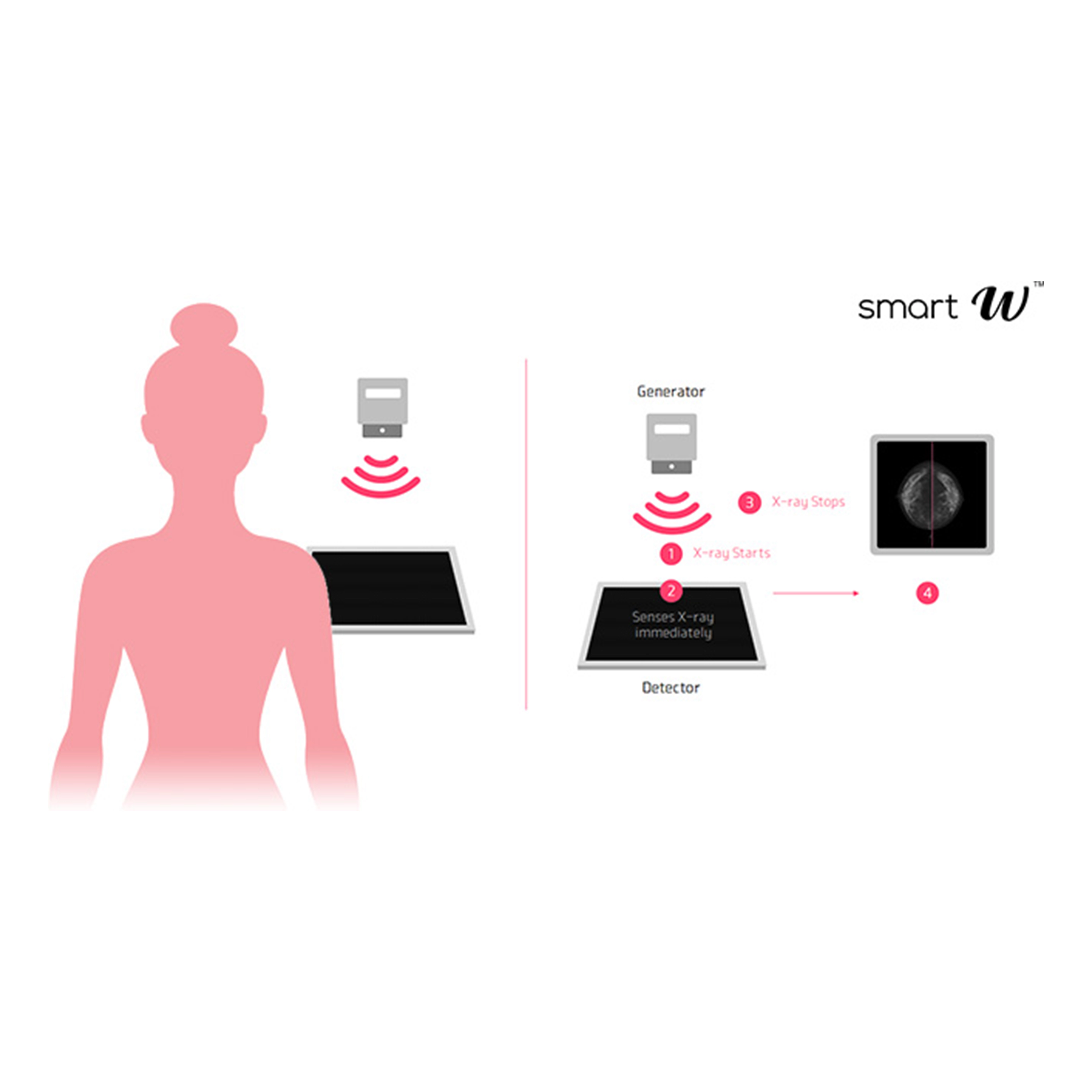

Enhanced Workflow - Smart-W™

  • Optimization X-ray Window Technology :
    detector senses X-ray immediately and processes an
    image right away once x-ray exposure is finished
Technical Specifications
Model NameFXMD-1008S
TechnologyIGZO TFT
ScintillatorCsI
Pixel Pitch75 ㎛
Spatial Resolution6.7 lp/㎜
Pixel Matrix3072 x 2304 pixels
Grayscale16 bits
Image Acquisition Time3 s
Recommended Cycle Time15 s
Data InterfaceGigabit Ethernet
X-ray Generator InterfaceAED Mode
Dimensions26.8 ㎝ x 19.5 ㎝ x 1.5 ㎝
Weight1 kg
Chest Wall Distance2 ㎜
Operating Environment10℃ to 35℃ / 30 % to 85 % RH (non-condensing)
Power ConsumptionDC 24 V, 0.75 A
