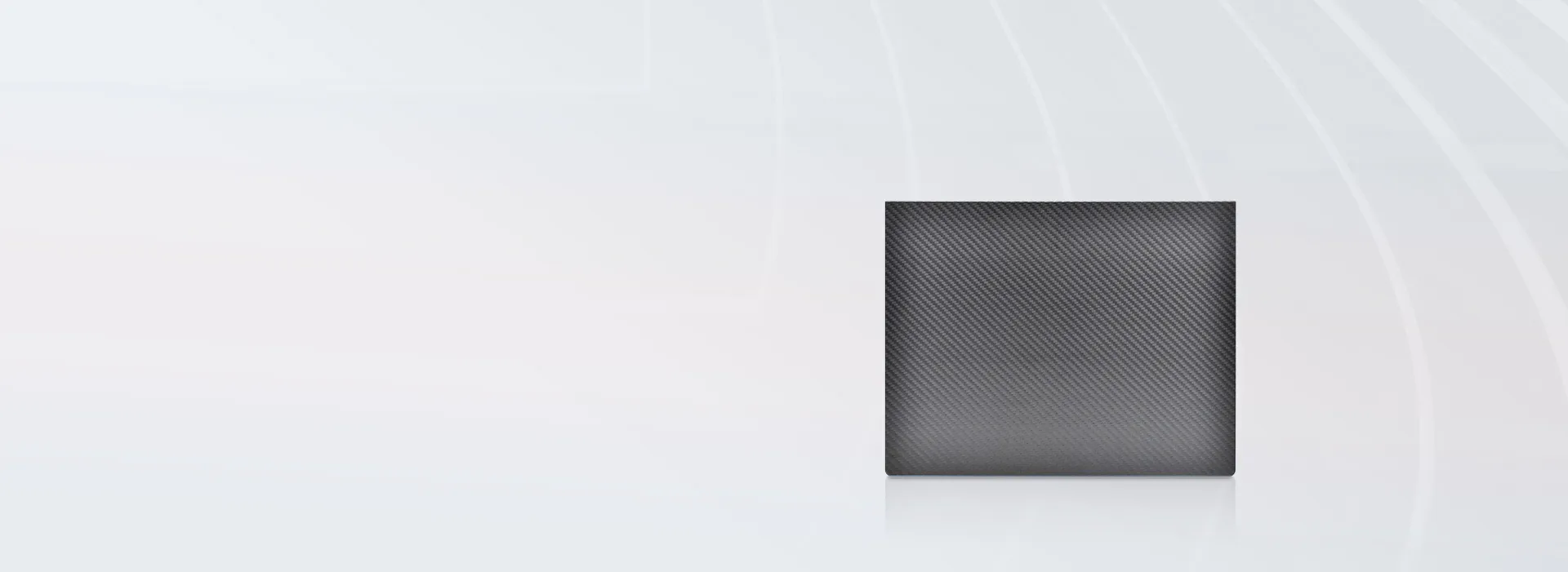

VIVIX-M 2430D
Superior Image Quality
- IGZO TFT Panel
- High MTF & DQE
- Pixel Pitch : 75 ㎛
Designed for 3D Mammography System
- Two Different Models: 2.2 fps / 4 fps
- DBT (Digital Breast Tomosynthesis)
- System Control AEC (Automatic Exposure Control)
Thin Chest Wall Distance
- Bezel Size : 1.8 mm
- Convenient Patient Positioning
- Securing Active Area Easily

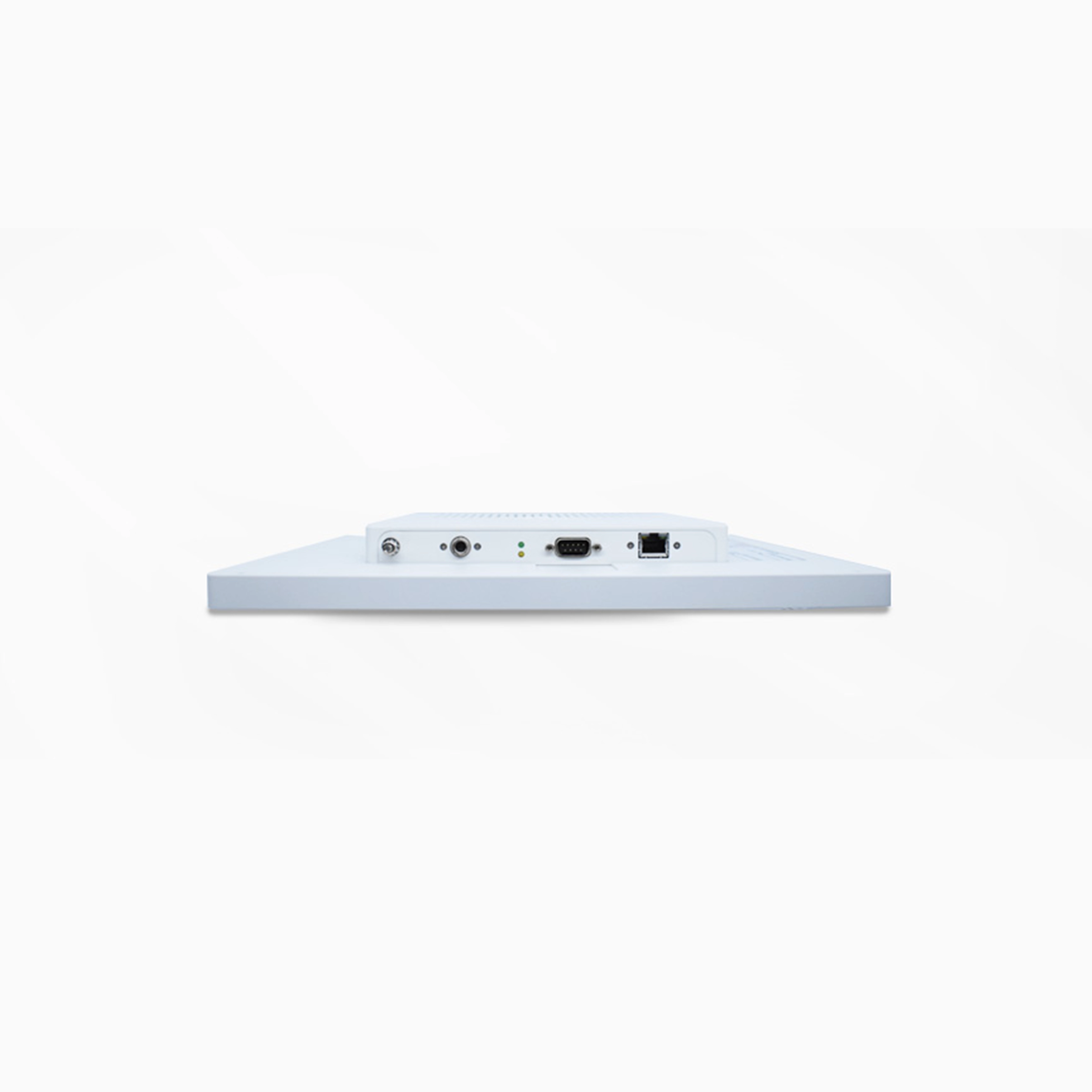

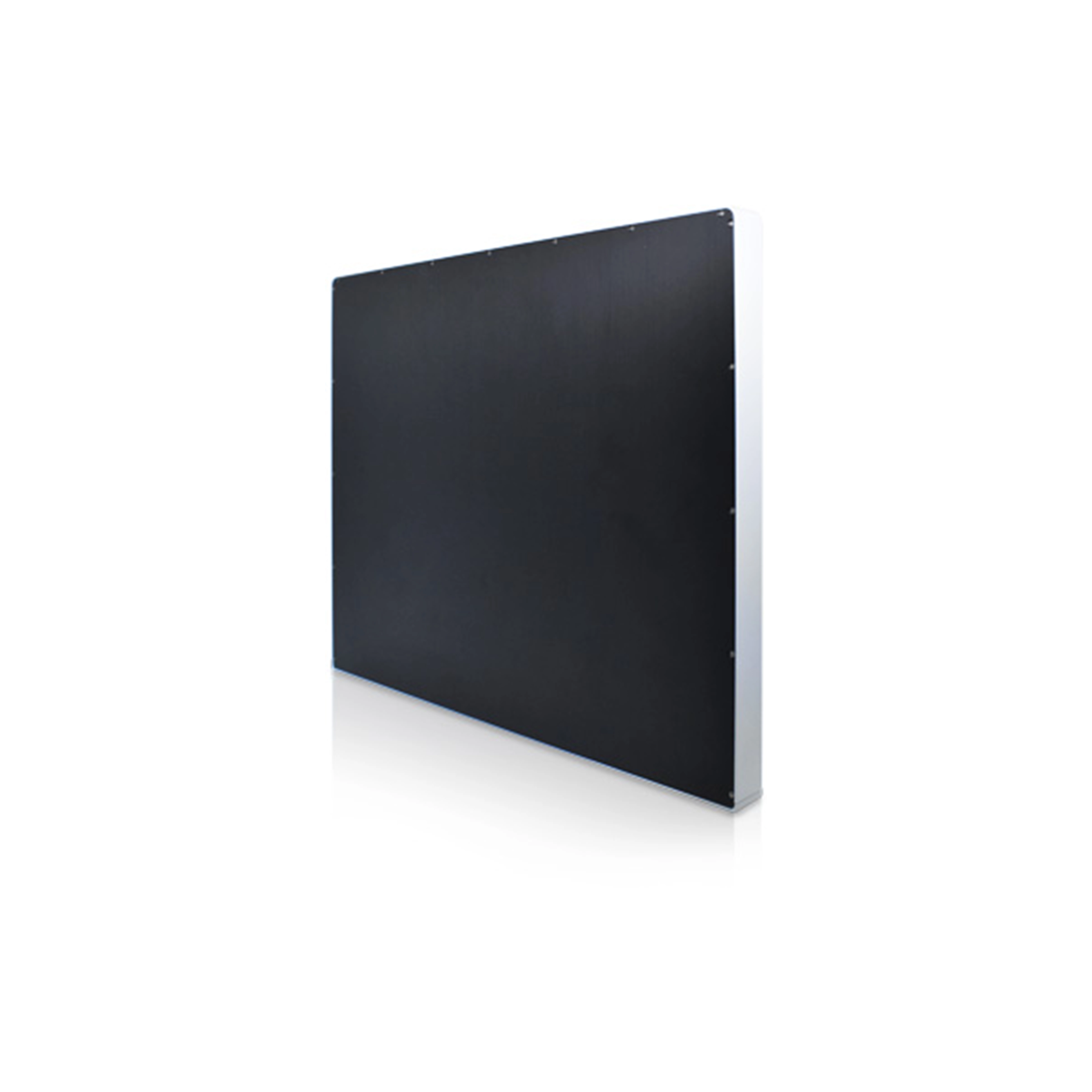

Image Gallery
Technical Specifications
| Model Name | FXMD-2430DAL / FXMD-2430DAH |
| Technology | IGZO TFT |
| Scintillator | CsI |
| Pixel Pitch | 75 ㎛ |
| Spatial Resolution | 6.7 lp/㎜ |
| Pixel Matrix | 3840 x 3072 pixels |
| Grayscale | 16 bits |
| X-ray Voltage Range | 20 - 45 kVp |
| Maximum Frame Rate | 2.2 / 4 fps |
| Image Acquisition Time | 3 s |
| Recommended Cycle Time | 15 s |
| Data Interface | Gigabit Ethernet |
| X-ray Generator Interface | External trigger |
| Dimensions | 32.8 ㎝ x 25.5 ㎝ x 3.5 ㎝ |
| Weight | 2.5 kg |
| Chest Wall Distance | 1.8 ㎜ |
| Operating Environment | 5℃ to 45℃ / 30 % to 85 % RH (non-condensing) |
| Power Consumption | DC 24 V, 1 A |
