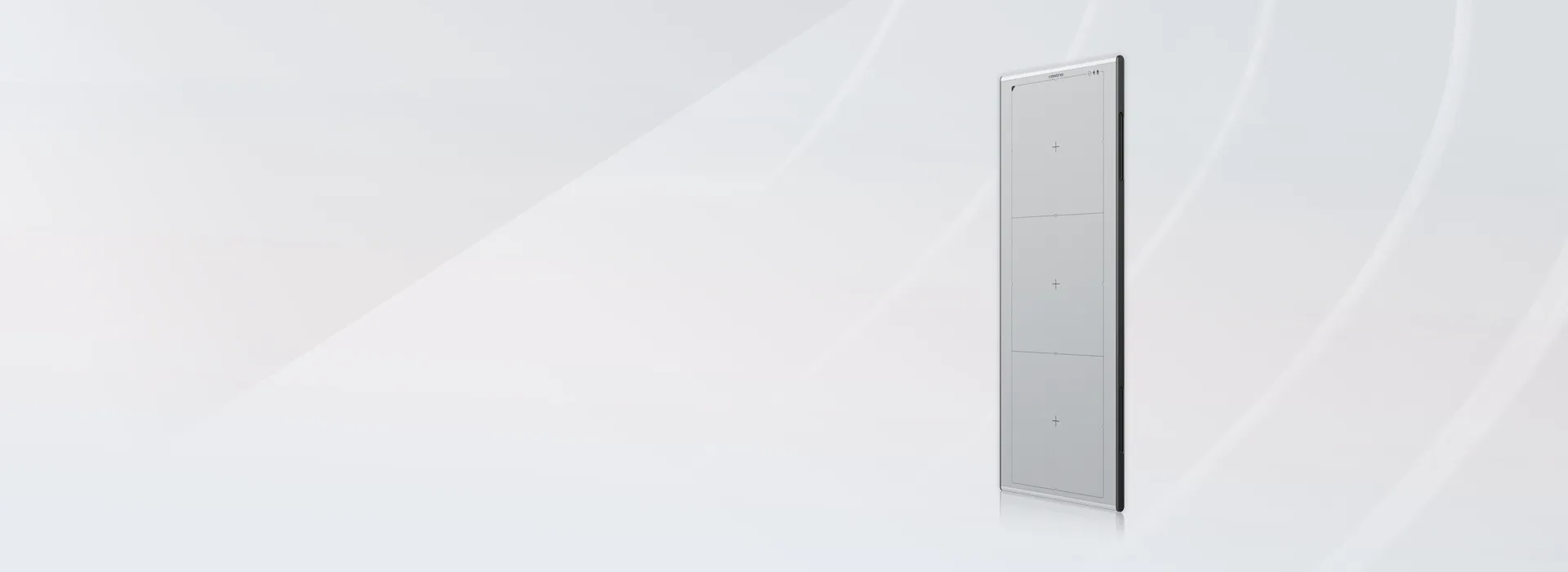

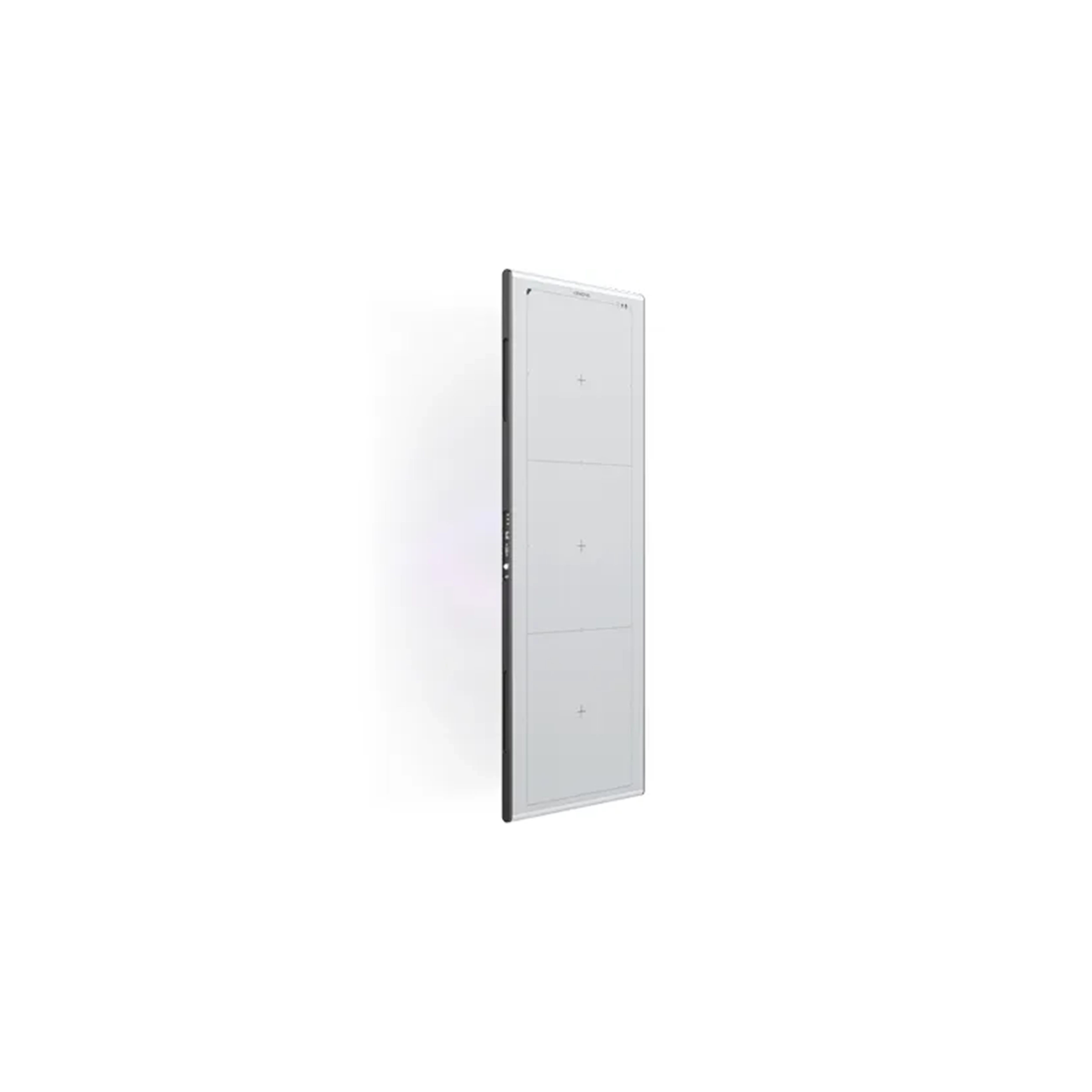

VIVIX-S 1751S
Single-shot exposure for 17" x 51" image
- Long & wide active area for one-shot long bone and full spine scan (43 x 129 cm)
- Low dose exposure for patients
- Streamlined workflow with short image acquisition time (8 sec.)
Superior Image Quality
- Pixel Pitch : 140 ㎛

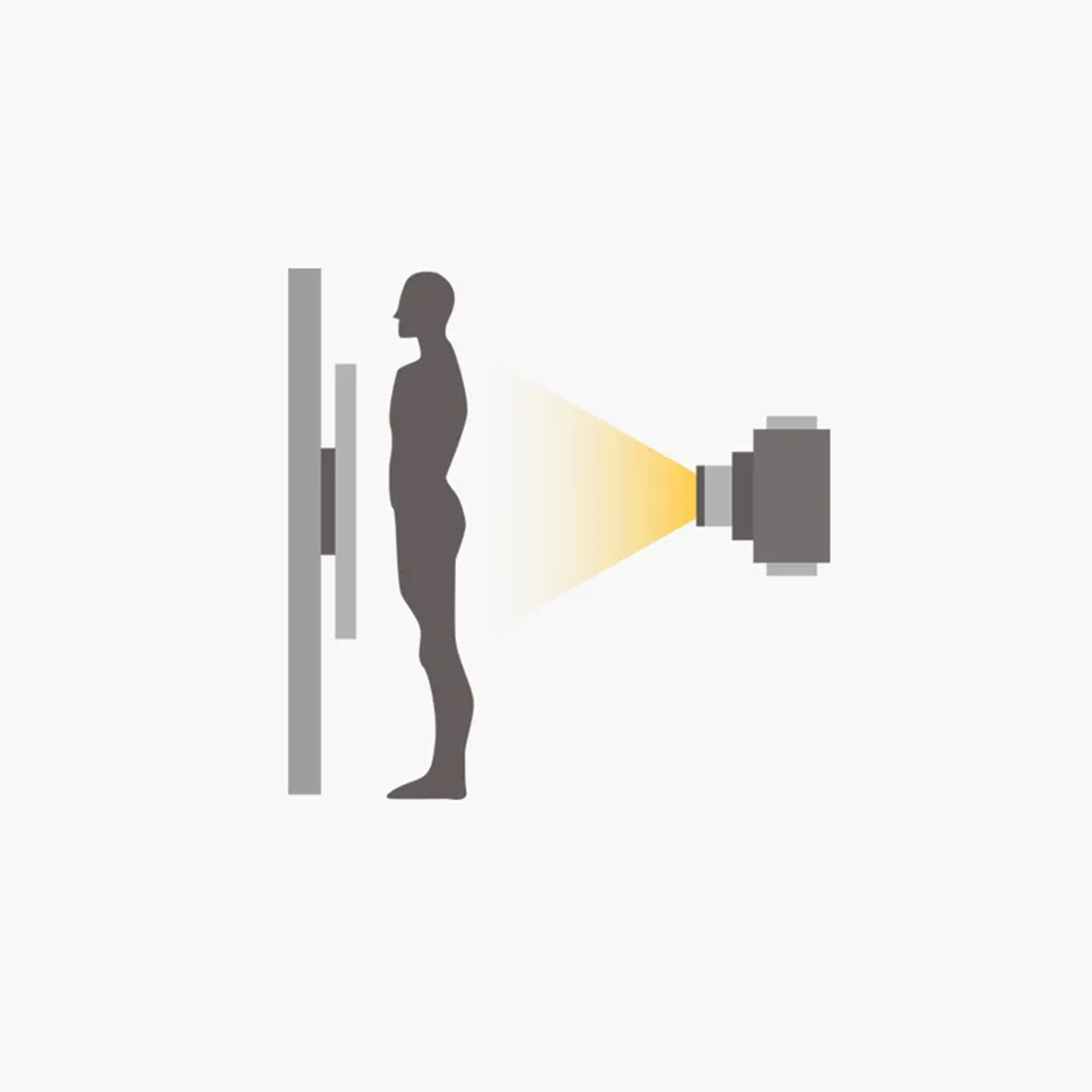

Multi-scan mode
- Multi-scan mode for selective body part imaging
Image Gallery
Technical Specifications
| Model Name | FXRD-1751SB |
| Technology | a-Si TFT |
| Scintillator | Gadox |
| Pixel Pitch | 140 ㎛ |
| Spatial Resolution | 3.5 lp/㎜ |
| Pixel Matrix | 3072 x 9216 pixels 3072 × 6144 pixels 3072 × 3072 pixels |
| Image Size | 17" × 51" (43.0 ㎝ × 129.0 ㎝) 17" × 34" (43.0 ㎝ × 86.0 ㎝) 17" × 17" (43.0 ㎝ × 43.0 ㎝) |
| Grayscale | 16 bits |
| Image Acquisition Time | 8 sec. |
| Recommended Cycle Time | 15 sec. |
| Data Interface | Gigabit Ethernet |
| X-ray Generator Interface | DR trigger Mode / AED Mode |
| Dimensions | 135.7 ㎝ × 53.2 ㎝ × 3.0 ㎝ |
| Weight | 19.7kg |
| X-ray Voltage Range | 40 - 150 kVp |
| Operating Environment | 10℃ to 35℃ / 30 % to 85 % RH (non-condensing) |
| Power Consumption | DC 24 V, 3.0 A |
