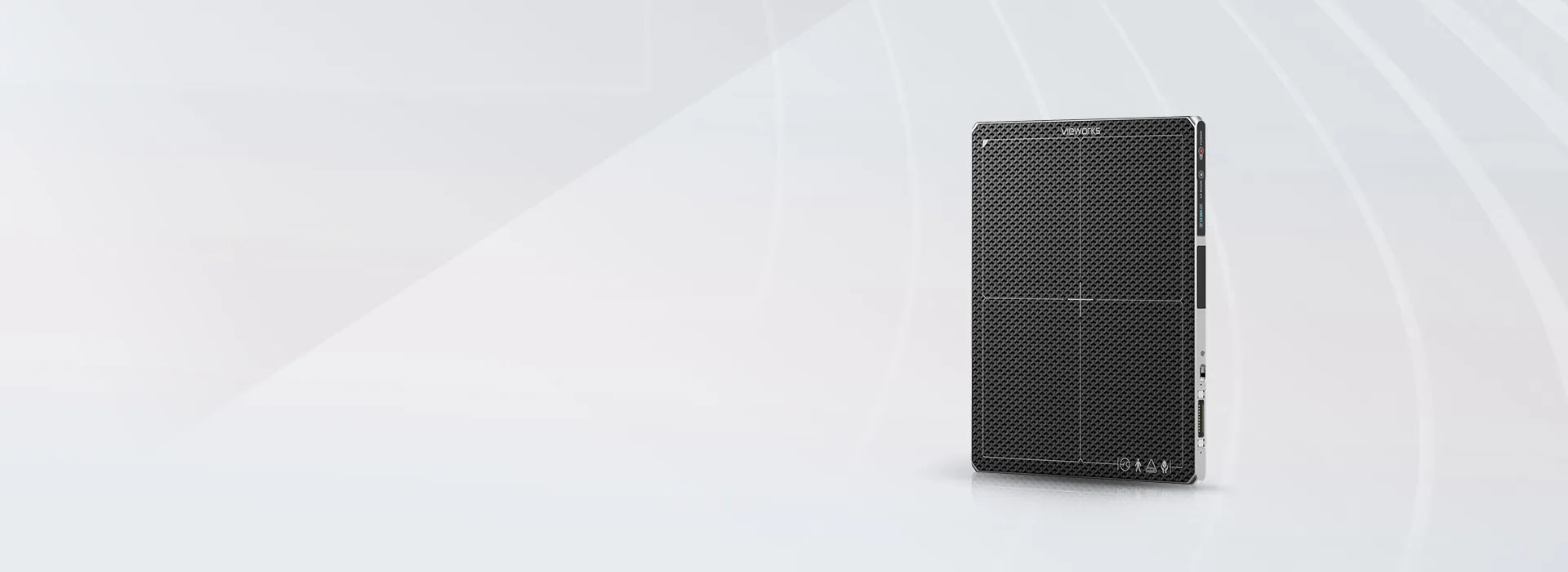

VIVIX-S 2530FW
FINEST Image Quality
- Pixel size : 99㎛
- High DQE
- Image enhancement with photon-understanding AI solution
FINEST Durability
- Unbreakable glass-free TFT
- Robust design : drop height of 1.5m
- IP67 water and dust resistance
FINEST Usability
- Lighter weight
- Long lasting battery
- Convenient charging methods
- User-friendly functions
Specifications
Model Name | FXRD-2530FAW |
Technology | a-Si Flexible TFT |
Scintillator | Flexible Csl |
Pixel Pitch | 99 ㎛ |
Spatial Resolution | 5.0 lp/㎜ |
Pixel Matrix | 2524 x 3036 pixels |
Image Size | 25 ㎝ × 30 ㎝ |
Grayscale | 16 bits |
Image Acquisition Time | ≤ 3 s |
Recommended Cycle Time | 5 s |
Data Interface | Gigabit Ethernet / IEEE 802.11n / ac |
X-ray Generator Interface | DR trigger Mode / AED Mode / Software Trigger |
Dimensions | 28.3 ㎝ × 33.3 ㎝ × 1.5 ㎝ |
Weight | 1.7 kg (1battery) |
Battery | Lithium Ion 3400mAh x 1 / 8 h (standby) * 1,500 images at a 15-second cycle. |
Dust and Water Resistant | IP67 |
X-ray Voltage Range | 40 - 150 kVp |
Operating Environment | 0°C to 40°C / 5 % to 90 % RH (non-condensing) |
Power Consumption | Normal: Max. 24 W / Charging: Max. 50W |
