VIVIX-S 2530VW
Superior Image Quality
- High MTF & DQE
- Pixel Pitch : 124 ㎛
Easy Upgrade
- Anytime™:
Vieworks' proprietary AED (Automatic Exposure Detection)
technology with reliable performance - InsideAP™ :
fast wireless communication (802.11n/ac)
Excellent Durability
- IP67 Dust and Water Resistance:
1) Protects against harmful dust
2) Protects from immersion in water with a depth of up to 1 m for up to 30 min - Temperature Stability:
0 degree Celsius to 40 degree Celsius - Strict Reliability Test :
1) 100 cm drop-tested
2) load limit of 400kg
Real Mobility

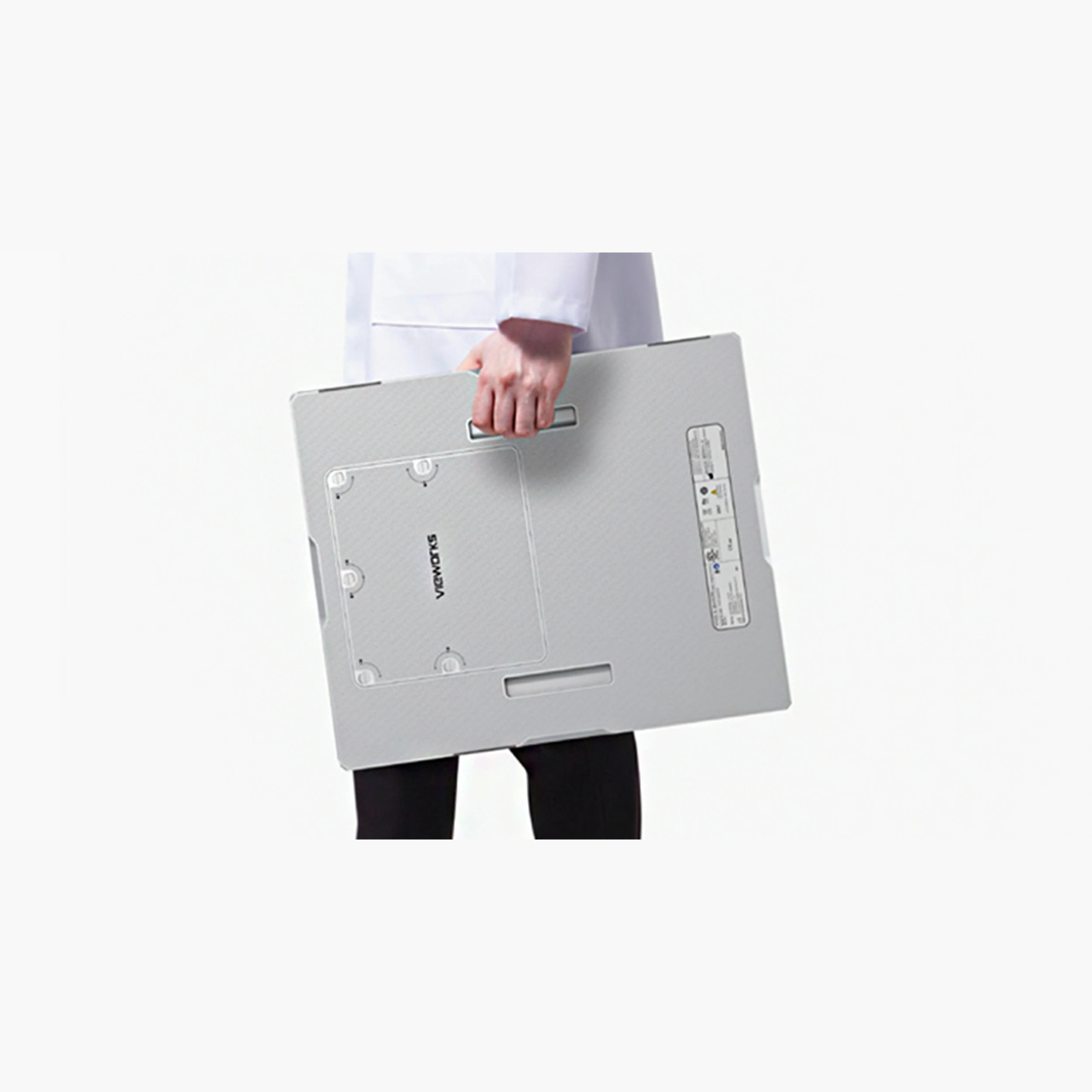

- Greater Portability:
light weighted (1.95 kg) and built-in handles to easy carry - Convenient Charging :

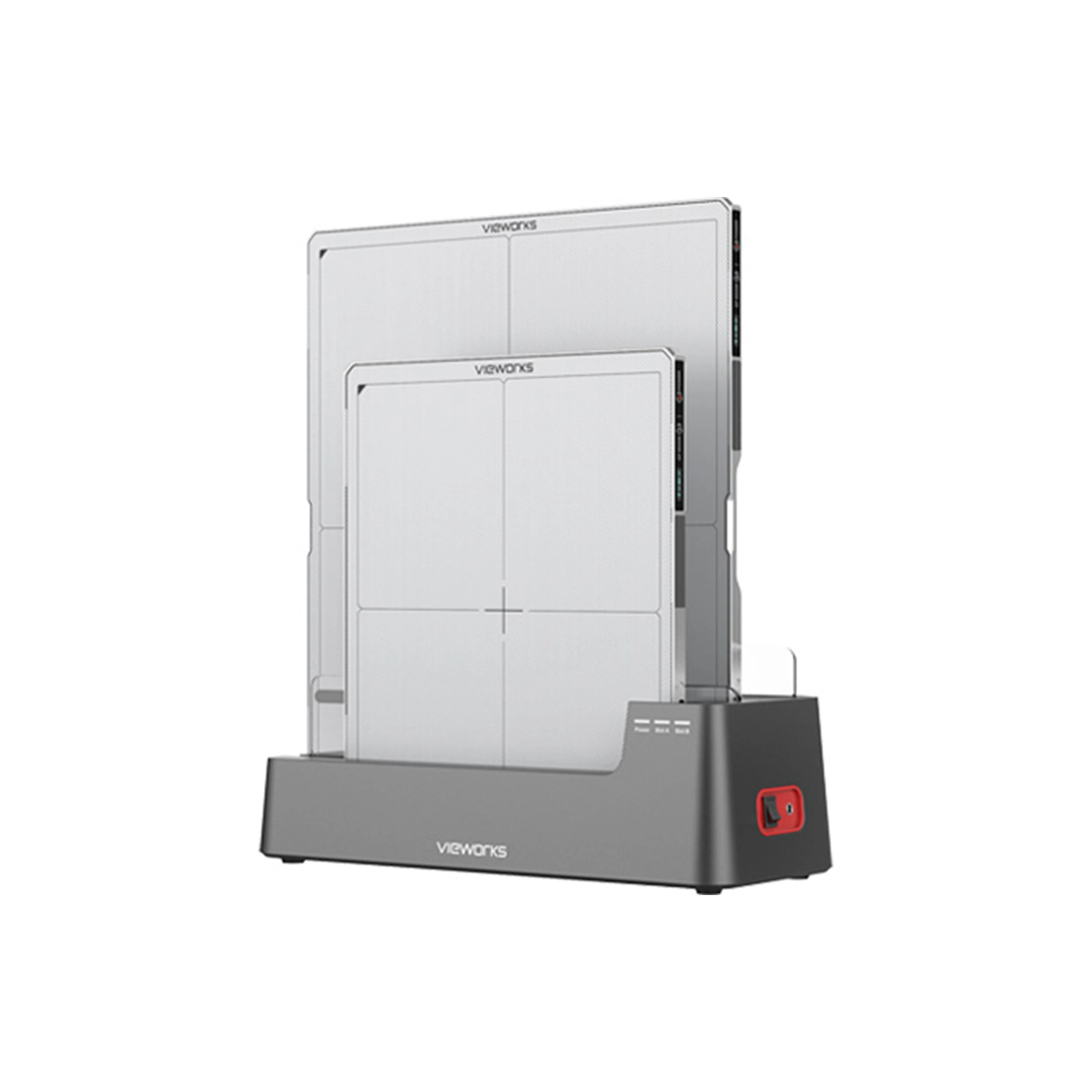

a variety of charging methods
(standard USB-C interface, magnetic tether connector, cradle) - OLED Status Screen :
easy check on battery charge level,
wired/wireless connection mode, sleep mode status
Image Gallery
Technical Specifications
| Model Name | FXRD-2530VAW / FXRD-2530VAW PLUS |
| Technology | a-Si TFT |
| Scintillator | CsI |
| Pixel Pitch | 124 ㎛ |
| Spatial Resolution | 4.0 lp/㎜ |
| Pixel Matrix | 2048 x 2560 pixels |
| Image Size | 25.4 ㎝ x 31.7 ㎝ |
| Grayscale | 16 bits |
| Image Acquisition Time | 2.5 s |
| Recommended Cycle Time | 4 s |
| Data Interface | Gigabit Ethernet / IEEE 802.11n / ac |
| X-ray Generator Interface | DR trigger Mode / AED Mode |
| Dimensions | 28.7 ㎝ x 35.0 ㎝ x 1.5 ㎝ |
| Weight | 1.95 kg / PLUS: 2.1kg |
| Battery | Lithium Ion 3400mAh x 1 / 8 h (standby) * 1,500 images at a 15-second cycle. |
| Dust and Water Resistant | IP67 |
| X-ray Voltage Range | 40 - 150 kVp |
| Operating Environment | 0°C to 40°C / 5 % to 90 % RH (non-condensing) |
| Power Consumption | Normal: Max. 15W / Charging: Max. 50W |
