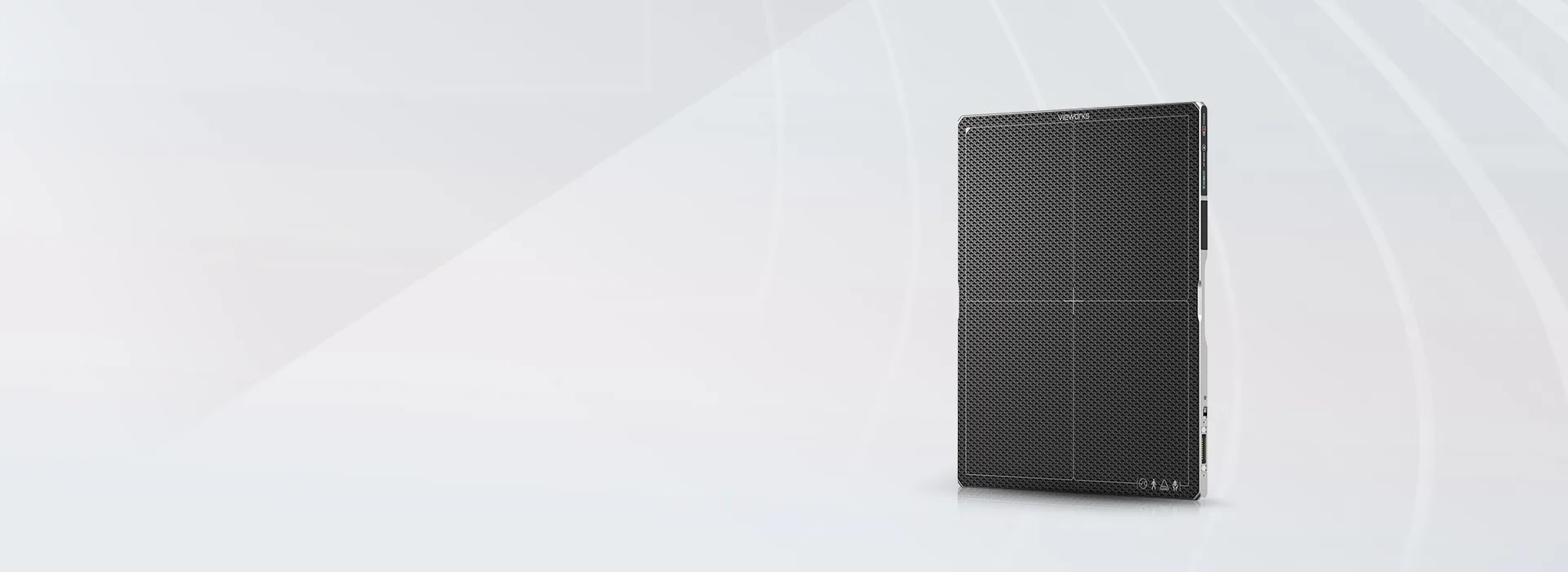

VIVIX-S 3643FW
FINEST Image Quality
- Pixel size : 99㎛
- High DQE
- Semi-dynamic function
- Image enhancement with photon-understanding AI solution
FINEST Durability
- Unbreakable glass-free TFT
- Robust design : drop height of 1.5m
- IP67 water and dust resistance
FINEST Usability
- Lighter weight
- Long lasting battery : up to 16 hours (2 batteries)

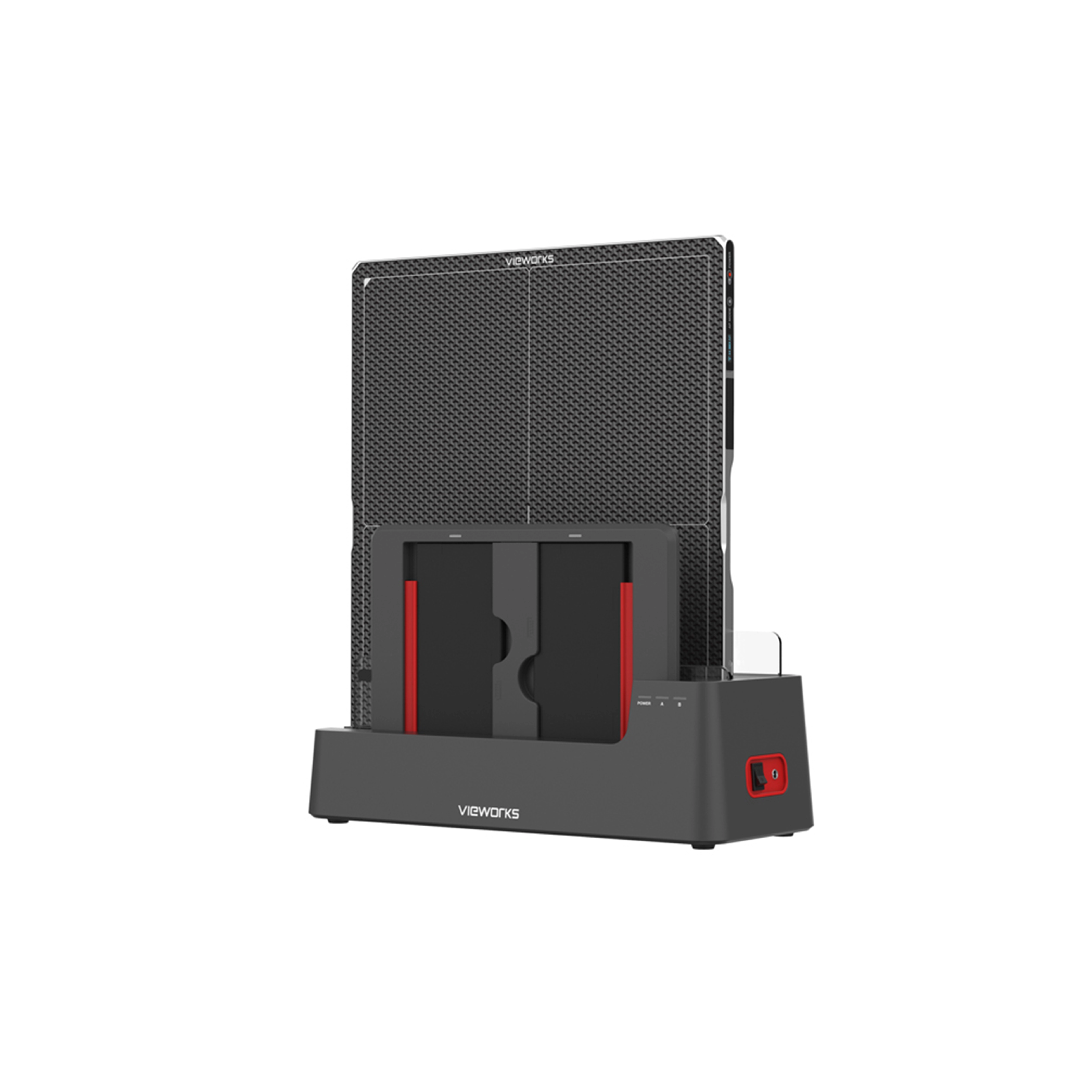

- Convenient charging methods
- User-friendly functions

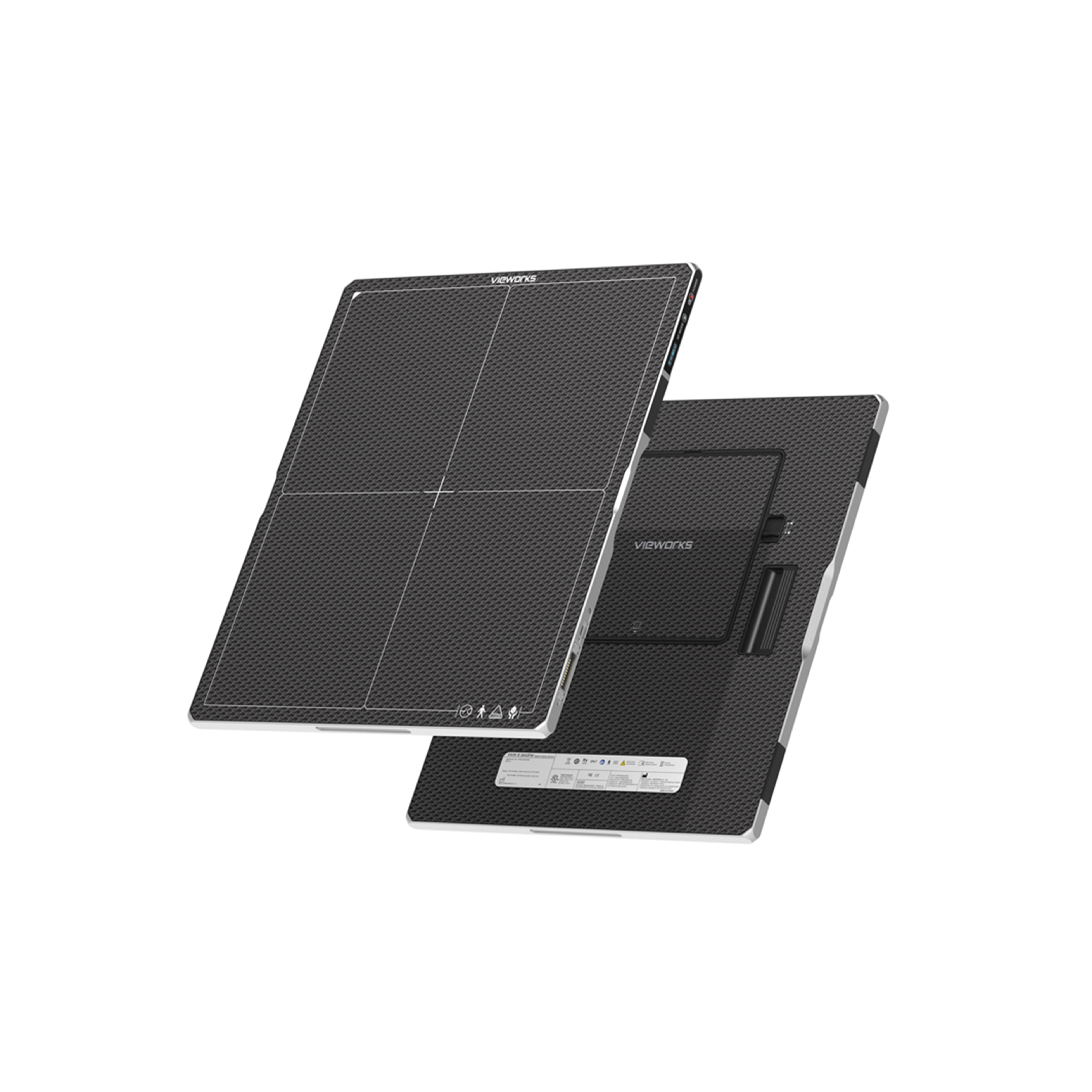

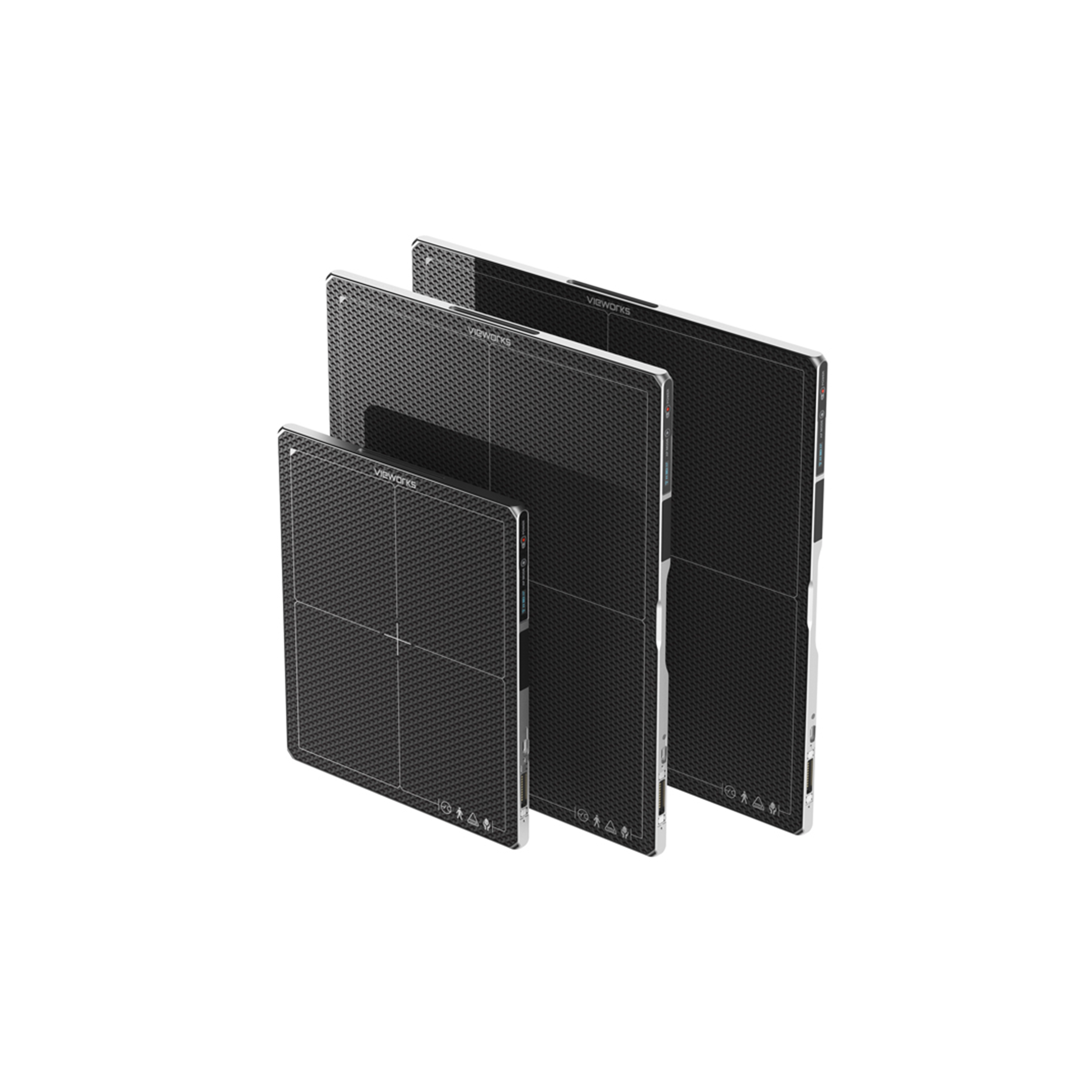

Image Gallery
Technical Specifications
Model Name | FXRD-3643FAW |
Technology | a-Si Flexible TFT |
Scintillator | Flexible Csl |
Pixel Pitch | 99 ㎛ |
Spatial Resolution | 5.0 lp/㎜ |
Pixel Matrix | 3548 x 4316 pixels |
Image Size | 36 ㎝ × 43 ㎝ |
Grayscale | 16 bits |
Image Acquisition Time | ≤ 4 s |
Recommended Cycle Time | 7 s |
Data Interface | Gigabit Ethernet / IEEE 802.11n / ac |
X-ray Generator Interface | DR trigger Mode / AED Mode / Software Trigger |
Dimensions | 38.4 ㎝ × 46.0 ㎝ × 1.5 ㎝ |
Weight | 2.4 kg (1 battery) / 2.6 kg (2 batteries) |
Battery | Lithium Ion 3400mAh x 2 / 16 h (standby) * 3,000 images at a 15-second cycle. |
Dust and Water Resistant | IP67 |
X-ray Voltage Range | 40 - 150 kVp |
Operating Environment | 0°C to 40°C / 5 % to 90 % RH (non-condensing) |
Power Consumption | Normal: Max. 24 W / Charging: Max. 80W |
