VIVIX-S 3643VW
Superior Image Quality
- High MTF & DQE
- Pixel Pitch : 140 ㎛
Easy Upgrade
- Anytime™: Vieworks' proprietary AED (Automatic Exposure Detection) technology with reliable performance
- InsideAP™ : fast wireless communication (802.11n/ac)
- ISO 4090 : same size as a film/CR cassette
Excellent Durability
- IP67 Dust and Water Resistance:
1) Protects against harmful dust
2) Protects from immersion in water with a depth of up to 1 m for up to 30 min - Temperature Stability:
0 degree Celsius to 40 degree Celsius - Strict Reliability Test :
1) 100 cm drop-tested
2) load limit of 400kg
Real Mobility
- Greater Portability: llight weighted (one battery: 2.95 kg or 6.5 lbs, two batteries: 3.15 kg or 6.94 lbs) and built-in handles to easy carry

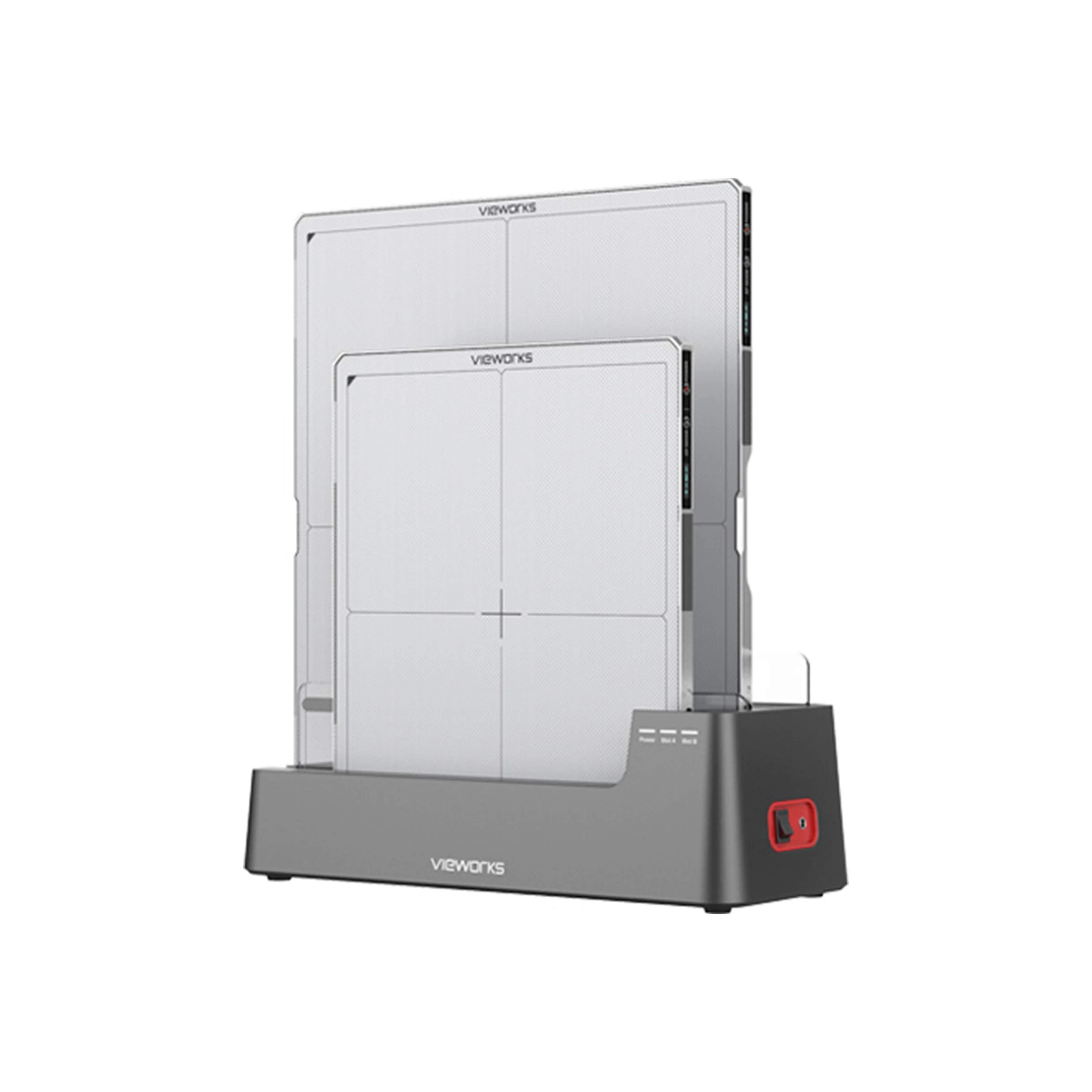

- Convenient Charging : a variety of charging methods (standard USB-C interface, magnetic tether connector, cradle)
- Long Lasting Battery : up to 16 hours of long operation
- OLED Status Screen : easy check on battery charge level, wired/wireless connection mode, sleep mode status
Image Gallery
Technical Specifications
| Model Name | FXRD-3643VAW / FXRD-3643VAW PLUS |
| Technology | a-Si TFT |
| Scintillator | CsI |
| Pixel Pitch | 140 ㎛ |
| Spatial Resolution | 3.5 lp/㎜ |
| Pixel Matrix | 2560 x 3072 pixels |
| Image Size | 35.8 ㎝ x 43.0 ㎝ |
| Grayscale | 16 bits |
| Image Acquisition Time | 3 s |
| Recommended Cycle Time | 4 s |
| Data Interface | Gigabit Ethernet / IEEE 802.11n / ac |
| X-ray Generator Interface | DR trigger Mode / AED Mode |
| Dimensions | 38.4 ㎝ x 46.0 ㎝ x 1.5 ㎝ |
| Weight | 2.95 kg (one battery) / 3.15 kg (two batteries) / PLUS: 3.1 kg (one battery) / 3.3 kg (two batteries) |
| Battery | Lithium Ion 3400mAh x 2 / 16 h (standby) * 3,000 images at a 15-second cycle. |
| Dust and Water Resistant | IP67 |
| X-ray Voltage Range | 40 - 150 kVp |
| Operating Environment | 0°C to 40°C / 5 % to 90 % RH (non-condensing) |
| Power Consumption | Normal: Max. 24W / Charging: Max. 80W |
