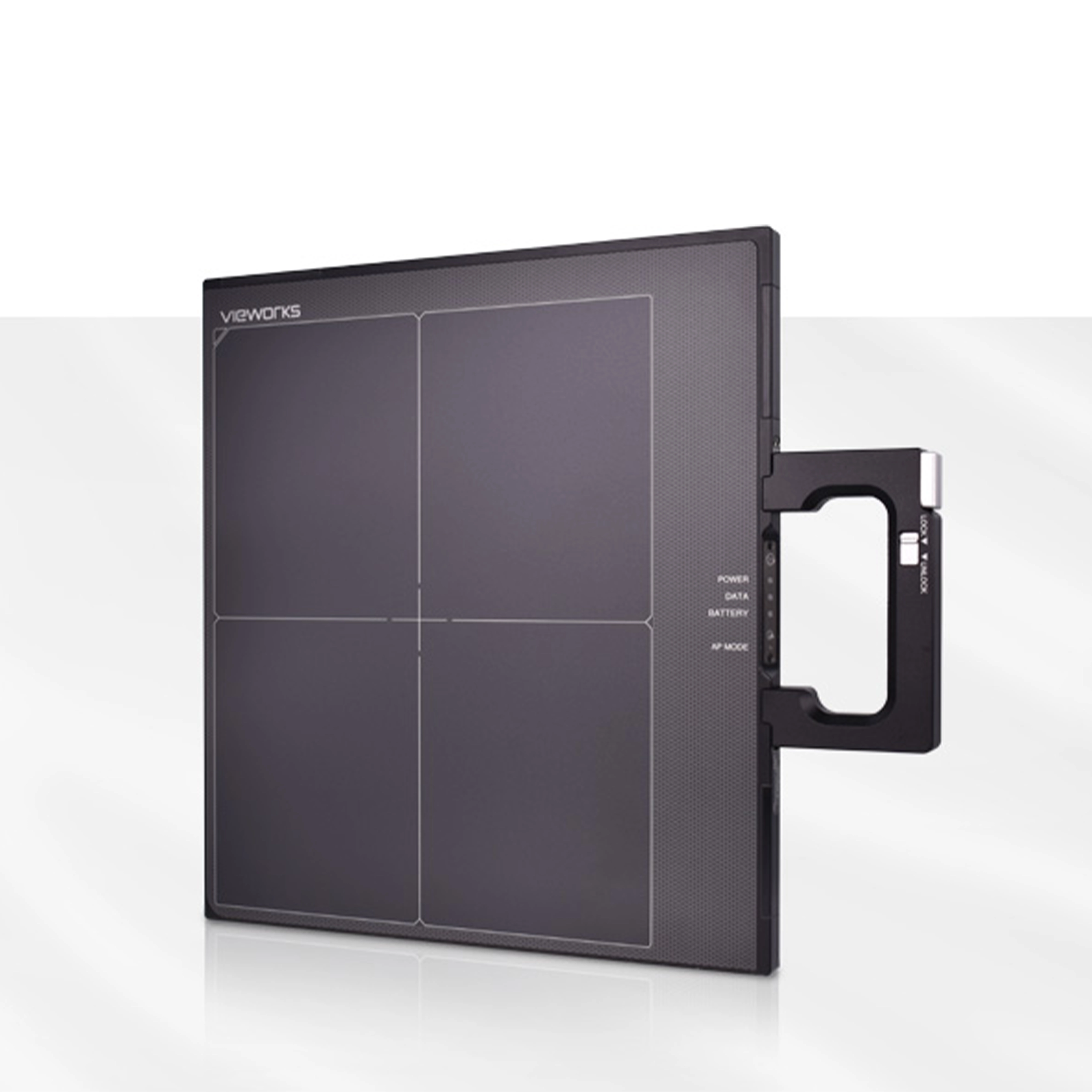

VIVIX-V 2532P
Superior Image Quality
- High MTF & DQE
- Pixel Pitch : 124 ㎛
Excellent Durability
- IP67 Dust and Water Resistance:
1) Protects against harmful dust
2) Protects from immersion in water with a depth of up to 1 m for up to 30 min - Temperature Stability
-20 degree Celsius to +50 degree Celsius
Maximum Portability
- High Speed Wireless Transmission: 802.11ac
- Wide Wireless Coverage : 3 internal antennas
- Light and Slim Design : 2.5 kg
- Detachable Handle for Two Sides
Better Usability
- Short Bezel Size : 8.5 mm on each of the two sides for securing active area easily
- Hot-swappable Batteries : replace batteries without turning off the detector
- Dual Battery : operates up to 8 hours
Image Gallery
Technical Specifications
| Model Name | VXTD-2532EAW |
| Technology | a-Si TFT |
| Scintillator | CsI / Gadox |
| Spatial Resolution | 4.0 lp/㎜ |
| Pixel Matrix | 2048 x 2560 pixels |
| Image Size | 10" x 12" (25.4 ㎝ × 31.7 ㎝) |
| Grayscale | 16 bits |
| Image Acquisition Time | Wired: 1.5 s / Wireless: 3 s |
| Data Interface | PoE Gigabit Ethernet / IEEE 802.11n / ac |
| X-ray Generator Interface | DR trigger Mode / AED Mode |
| Dimensions | 32.2 ㎝ × 35.5 ㎝ × 1.7 ㎝ |
| Weight | 2.5 kg |
| Battery | 8 h (capturing) / 9 h (standby) |
| Dust and Water Resistant | IP67 |
| X-ray Voltage Range | 40 - 150 kVp |
| Operating Environment | -20℃ to +50℃ / 30 % to 85 % RH (non-condensing) |
| Power Consumption | DC 24 V, 0.8 A |
