InSight
SWIR (NIR-II) fluorescent
in vivo imaging and analysis system
InSight
VISQUE InVivo InSight is a in vivo SWIR fluorescent imaging and analysis system.
Features
High-sensitivity Camera
Advanced Cooling Technology
- High sensitivity maintained with as low as - 60℃ (air cooling)
- Easy maintenance with no need for a chiller
Streamlined Workflow with Wide Field of View
Broad Field of View
- Capture up to 3 mice simultaneously
- Easy adjustment with 1-3x zoom capability
Superior Emission and Excitation Filter Performance
Emission Filters
- Up to 9 customizable filters ( 900 nm 1,700 nm) Emi. 900nm, 937nm, 980nm, 1064nm, 1319nm, 1550nm
Diverse Filter Configurations
- Stack up to 2 filters, allowing for 2 filters per slot
- Precise adjustment of emission spectral range for refined wave length customization

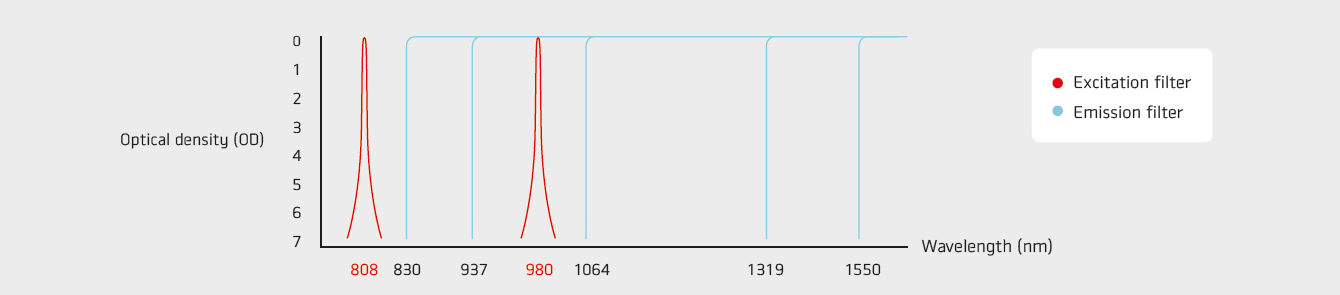

Superior Filter Performance
- Semrock filter: hard-coated filter width up to 6-7 optical density
- Enhanced precision with hard-coating for refined light blocking
- Effective blocking of unwanted light (6-7 optical density) while allowing transmission of light that needs to pass through (over 90% transmission)

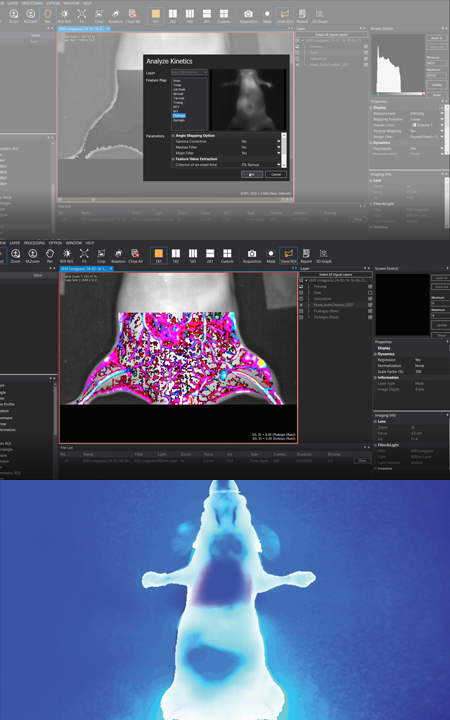

Intelligent in vivo Imaging Viewer & Kinetic Analysis Program
1) Fast and Convenient Analysis Tools
- One-click analysis
: automatic display of fluorescence level and simple setting - Image process
: autofluorescence signal removal, merge of multi-spectral images - Report mode
>
2) Convenient Post-image Analysis and Edition Tools
- *.cif analysis file output
- The display and analysis of four-different images in one screen
- Other supported formats
: tif, bmp, jpg, png
3) Advanced Imaging and Analysis Software
- Time-lapse imaging analysis
- Kinetic analysis: Dynamics graph and 10 kinds of algorithms
- Image analysis:
Autofluorescence removal, Spectral unmixing, Merge of multi-spectral image
Refined Design and Optional Accessories to Enhance Usability
Easy Lens Control to Obtain Precise Imaging
- Convenient and detailed focus control with real-time observation of mice
- Zoom Focus for detailed adjustments
Real-time Fluorescent Signal Pre-RUN
- Real-time visualization of fluorescent signals
- Facilitates easy optimization of research settings
(focus, exposure time, filter combinations)
Technical Specification
| InSight | ||
|---|---|---|
| System | ||
| Imaging Capability | in vivo Imaging, SWIR fluorescent imaging | |
| Camera | ||
| Sensor | InGaAs | |
| Cooling | -60℃ (Air cooling, @ 20℃ ambient) | |
| Resolution (H × V) | 640 X 512 | |
| Pixel Size | 15 x 15 μm | |
| Digital Output | 16 bit | |
| Binning | 1×1, 2×2, 4×4 | |
| Fluorescence | ||
| Light Source | Laser | |
| Fluorescence Filter | Excitation Filter | Basic wavelength: 808nm Option wavelength: 976nm |
| Emission Filter | Up to 9 filters (2 basic filters mounted) | |
| Lens | ||
| Control | Motorized Zoom / Focus | |
| Zoom (Field of View, H × V) | 20 x 11 cm ~ 8 x 6.5 cm | |
| Stage | ||
| Animal Capacity | 3 mice / 2 rats | |
| Heating Stage | Off / 25℃ / 36℃ | |
| Anesthesia Ventilator Adaptor | Yes | |
| CleVue Software | ||
| Image Acquisition Mode | Single-frame, Time-lapse imaging | |
| Supported File Format | cif (exclusive file format), tif, bmp, jpg, png | |
| Kinetic Analysis | Dynamics graph and 10 kinds of algorithms for kinetic analysis | |
| Image Analysis | Quantification, ROI, Autofluorescence removal, Spectral unmixing, Merge of multi-spectral images | |
* Specifications are subject to change without prior notice.
* This system is for research purpose only
